Fuel Pump Module

NOTE: For installation and removal, refer to FUEL PUMP MODULE REPLACEMENT .

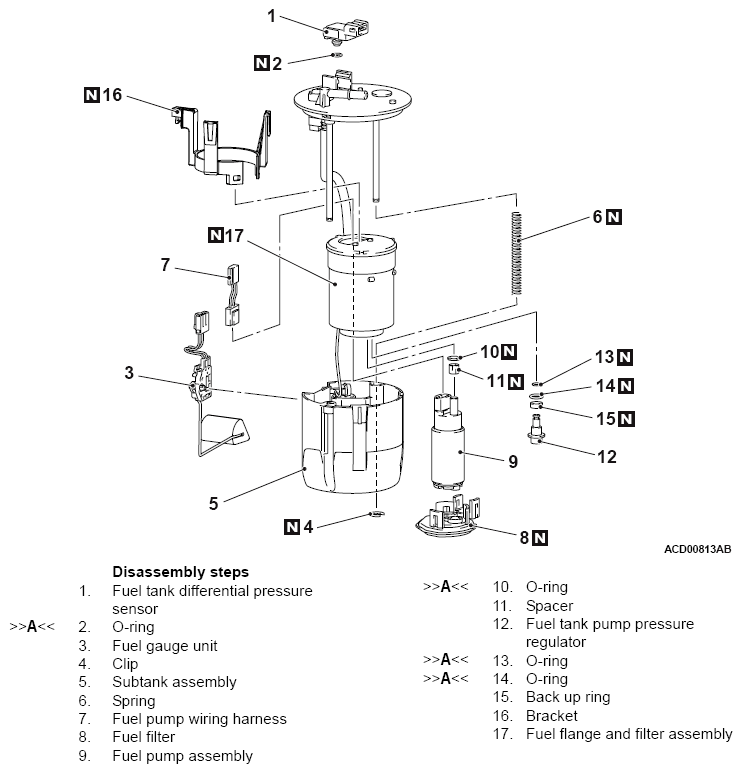

Fig 1: Disassembling/Assembling Fuel Pump Module With Torque Specification - FWD
G09664592Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Disassembling/Assembling Fuel Pump Module With Torque Specification - AWD
G09664593Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
