Outlander ES
›
Repair and Diagnosis
›
Engine Performance
›
Ignition System
›
General Information
›
System Diagram
System Diagram

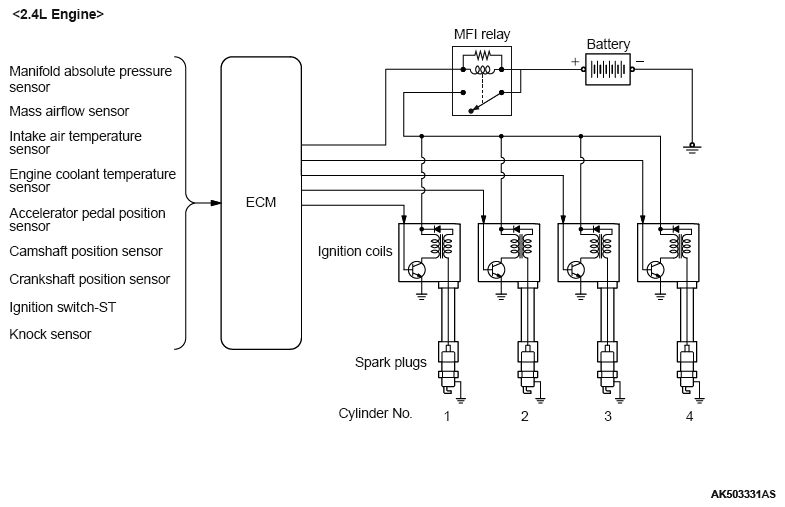

Fig 1: Ignition System Diagram (2.4L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

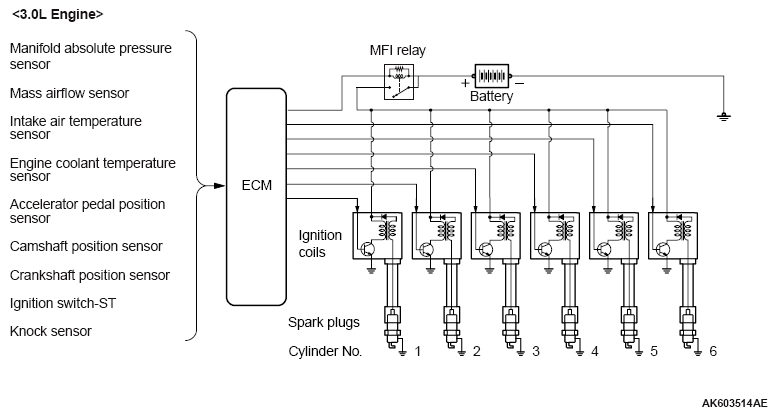

Fig 2: Ignition System Diagram (3.0L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
