Home › Mitsubishi › 2014 › Outlander ES › Repair and Diagnosis › Engine Performance › Ignition System › Ignition Coil › REMOVAL AND INSTALLATION - 2.4L Engine

REMOVAL AND INSTALLATION - 2.4L Engine

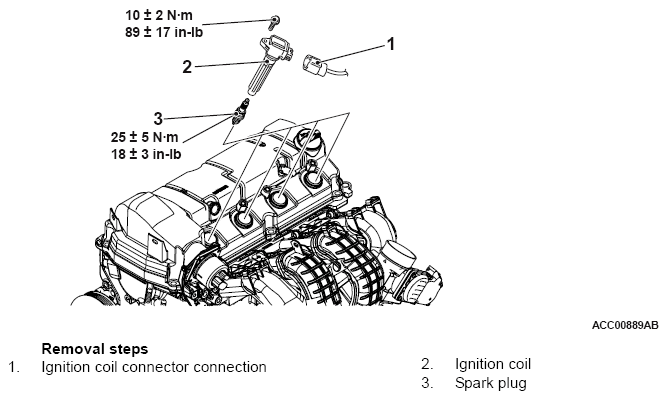

Fig 1: Removing/Installing Ignition Coil With Torque Specifications (2.4L Engine)
G09664788Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
