Removal And Installation
›
Notes
Removal And Installation: Notes
CAUTION:
For the removal of the headlining, refer to
SERVICE PRECAUTIONS
and
CURTAIN AIR BAG MODULE
.

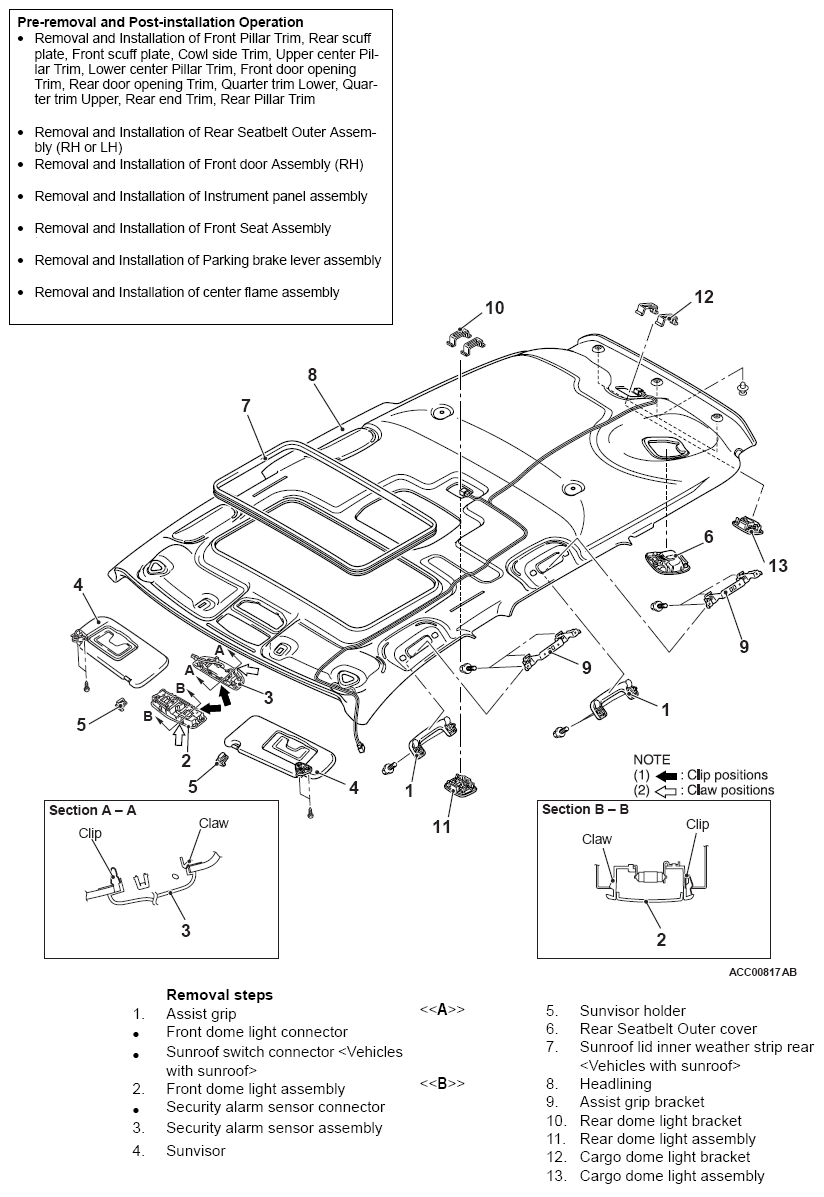

Fig 1: Removing/Installing Headlining
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
