Liftgate Trim
›
Removal And Installation
Removal And Installation

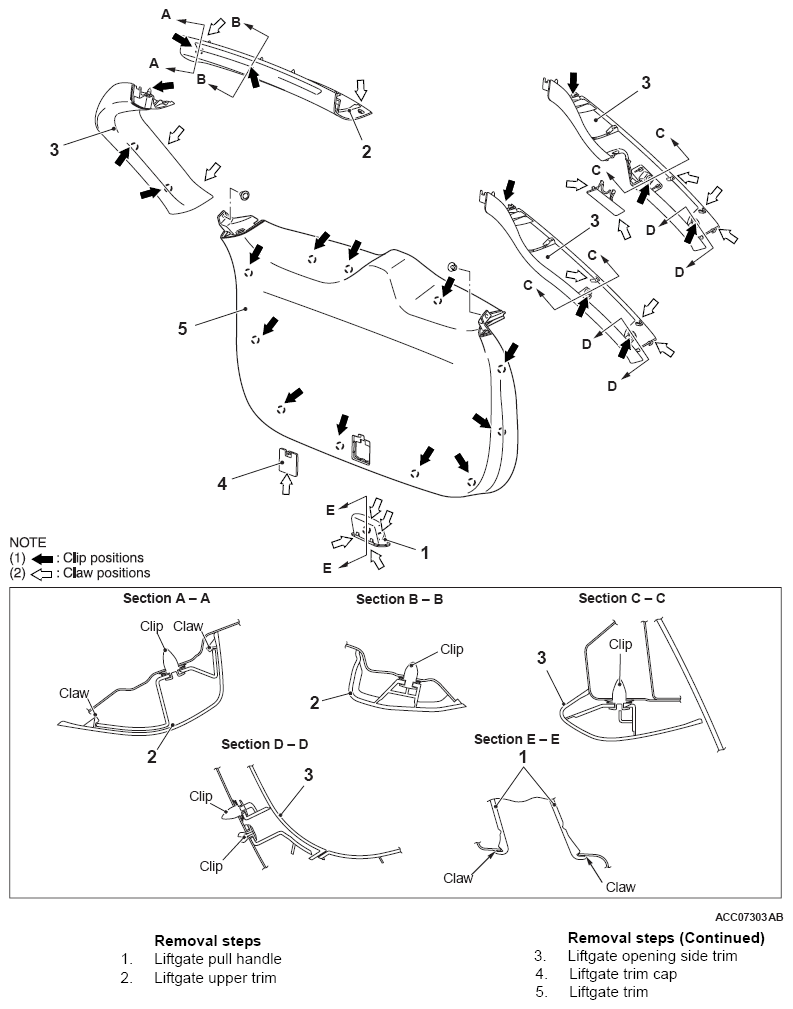

Fig 1: Locating Liftgate Trim Clips And Claws Position
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
