Removal And Installation - AWD: Notes

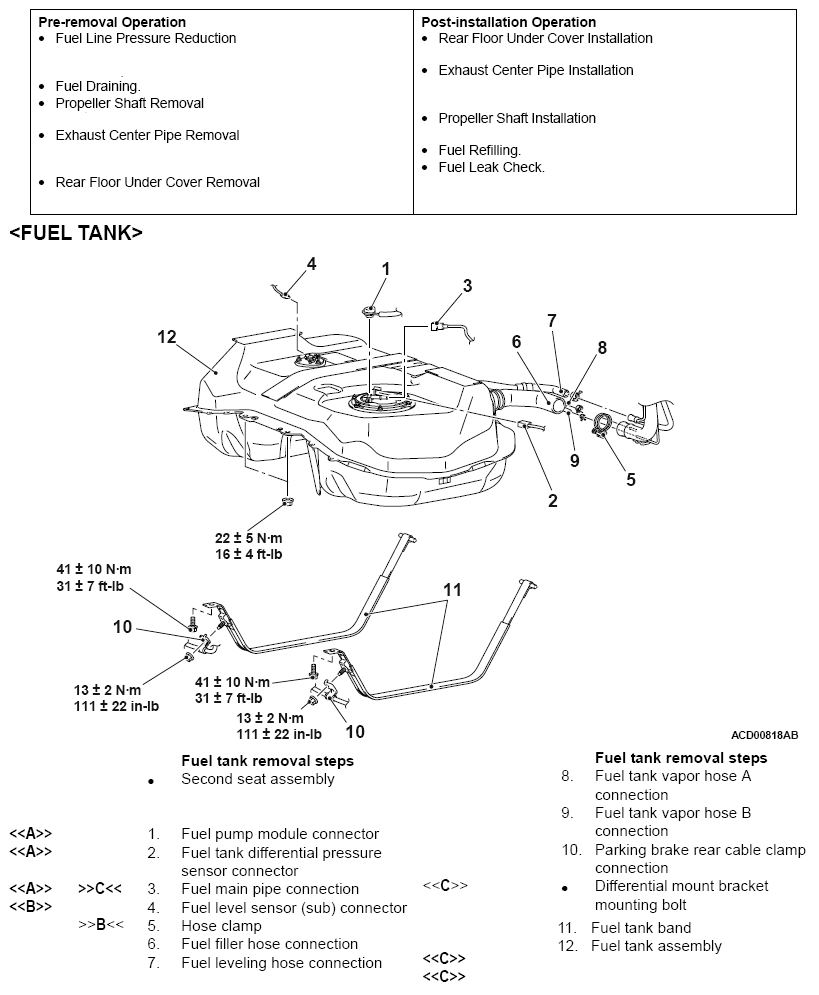

Fig 1: Removing/Installing Fuel Tank With Torque Specification - AWD (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Removing/Installing Fuel Tank With Torque Specification - AWD (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
