Disassembly And Assembly: Notes

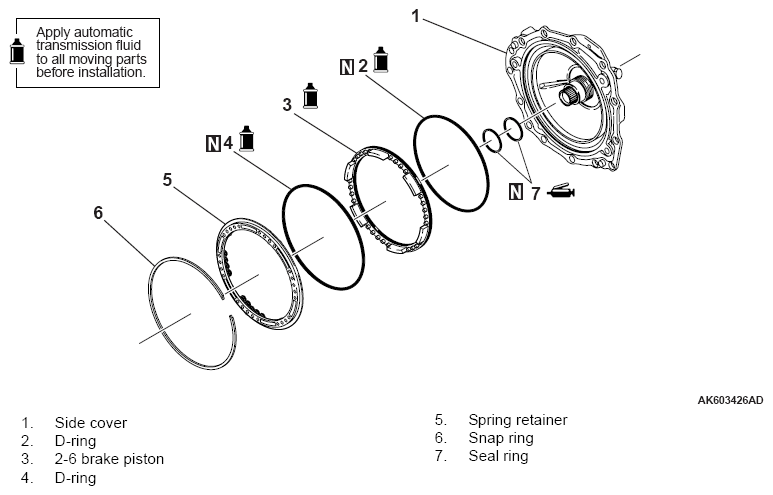

Fig 1: Disassembled View Of Side Cover

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools:

• MB992196: Spring compressor
  Fig 2: Identifying Seal Rings

  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
