Hands Free Module
›
General Information
›
System Block Diagram
System Block Diagram

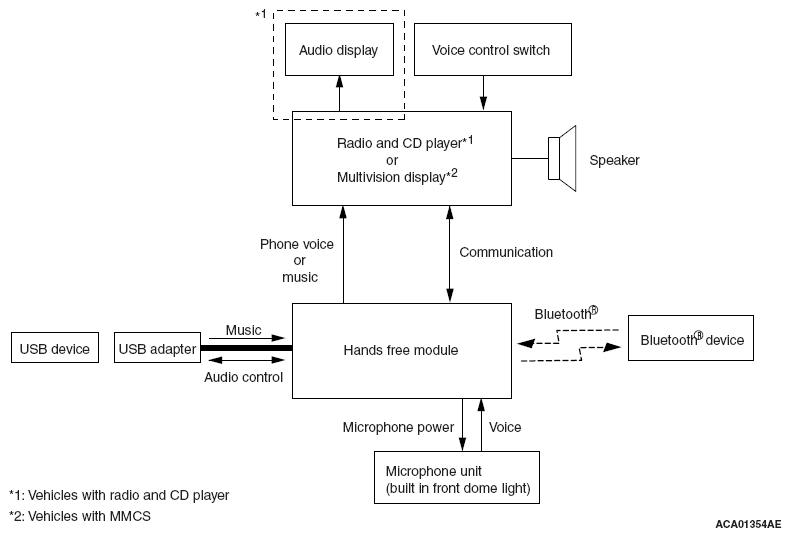

Fig 1: Hands Free Module System Block Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
