Engine Oil Pressure Switch
›
Removal And Installation
›
Notes
Removal And Installation: Notes

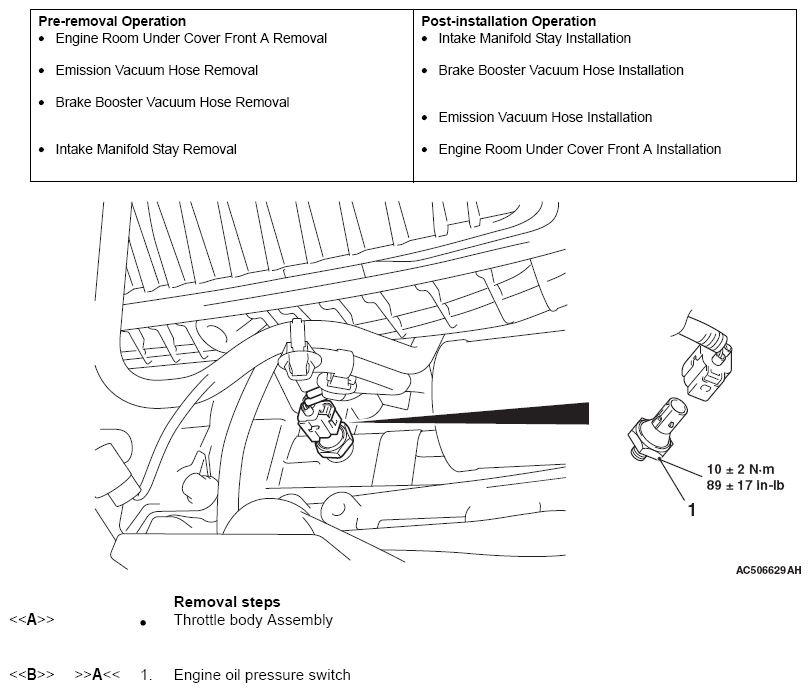

Fig 1: Removing/Installing Engine Oil Pressure Switch Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tool:
MB992118: Oil Pressure Switch Wrench
