Removal And Installation

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assembly."

Name	Symbol	Size (D x L) mm	Color	Shape
Tapping screw	a	5 x 14	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Tapping screw	b	5 x 16	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Bolt with washer	c	6 x 16	-	Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

Before removing the passenger's (front) air bag module, refer to SERVICE PRECAUTIONS (refer to and DRIVER'S AIR BAG MODULE AND CLOCK SPRING (refer to ).
Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

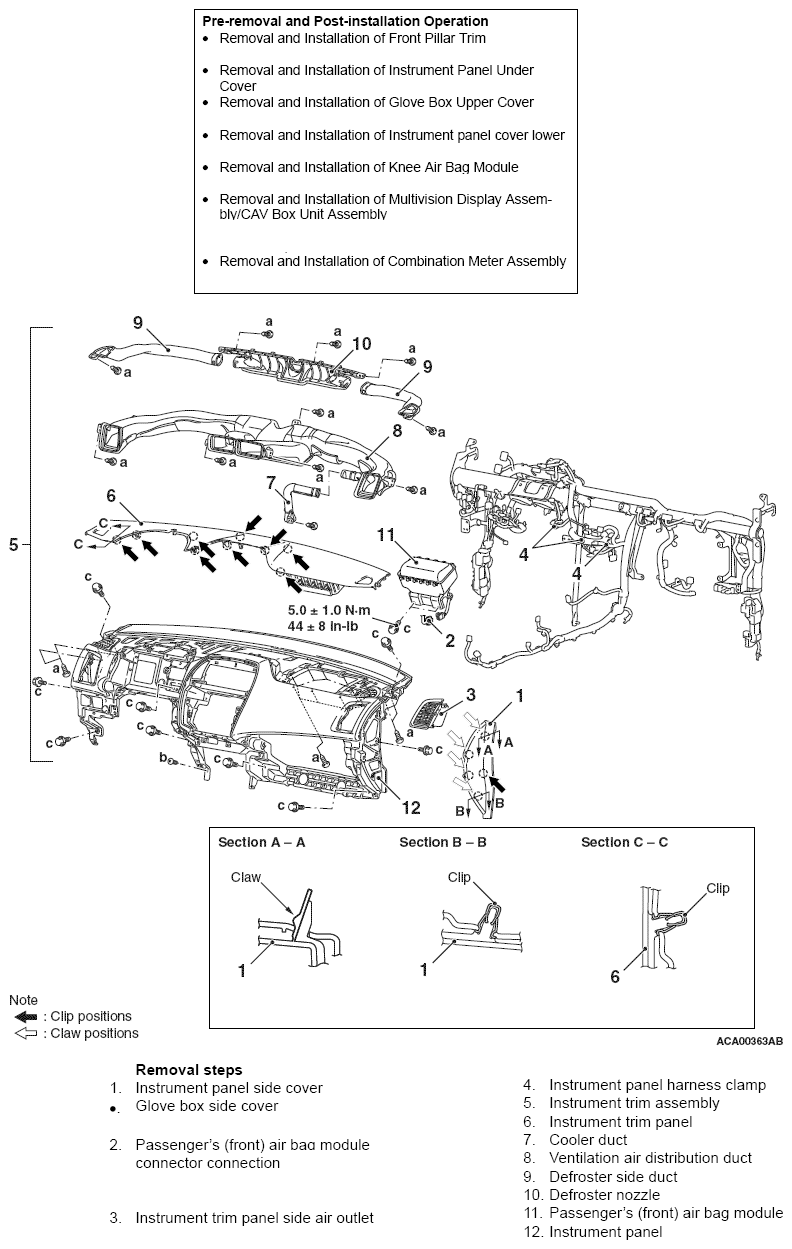

Fig 1: Exploded View Of Instrument Panel Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
