Home › Mitsubishi › 2014 › RVR ES › Repair and Diagnosis › Restraints › Passive Restraints › Interior › Sunshade Assembly › Disassembly And Reassembly › Notes

Disassembly And Reassembly: Notes

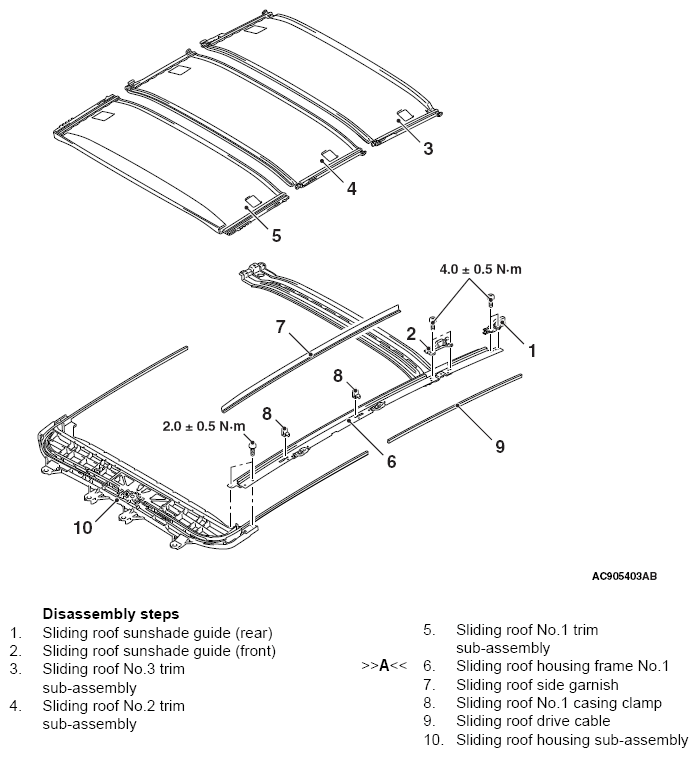

Fig 1: Disassembling View Of Sunroof
G09671226Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
