Continuously Variable Transaxle (CVT) Overhaul
›
Forward Clutch
›
Disassembly And Assembly
›
Notes
Disassembly And Assembly: Notes

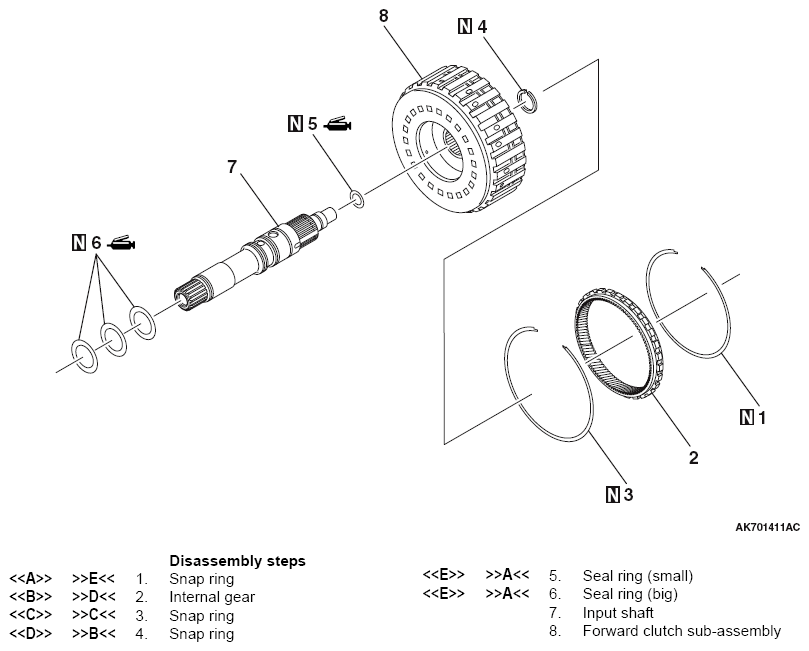

Fig 1: Exploded View Of Forward Clutch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
