OEM Component Locations: Relay

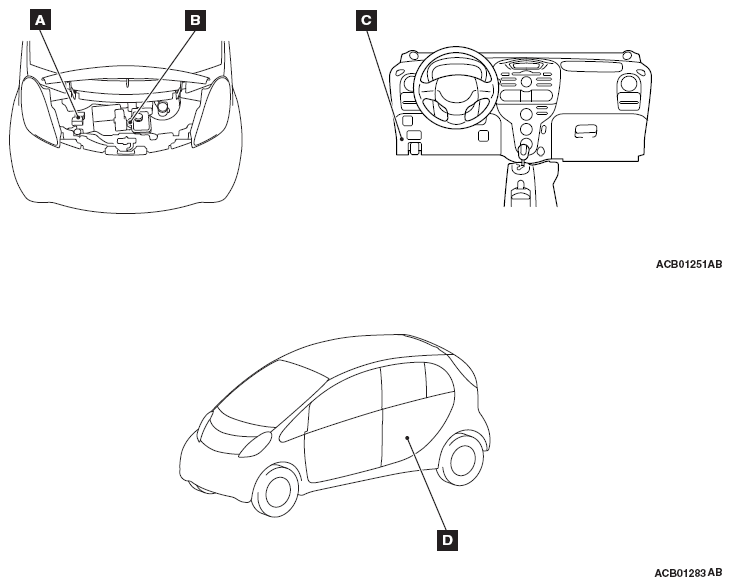

Fig 1: Identifying Relay Locations (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

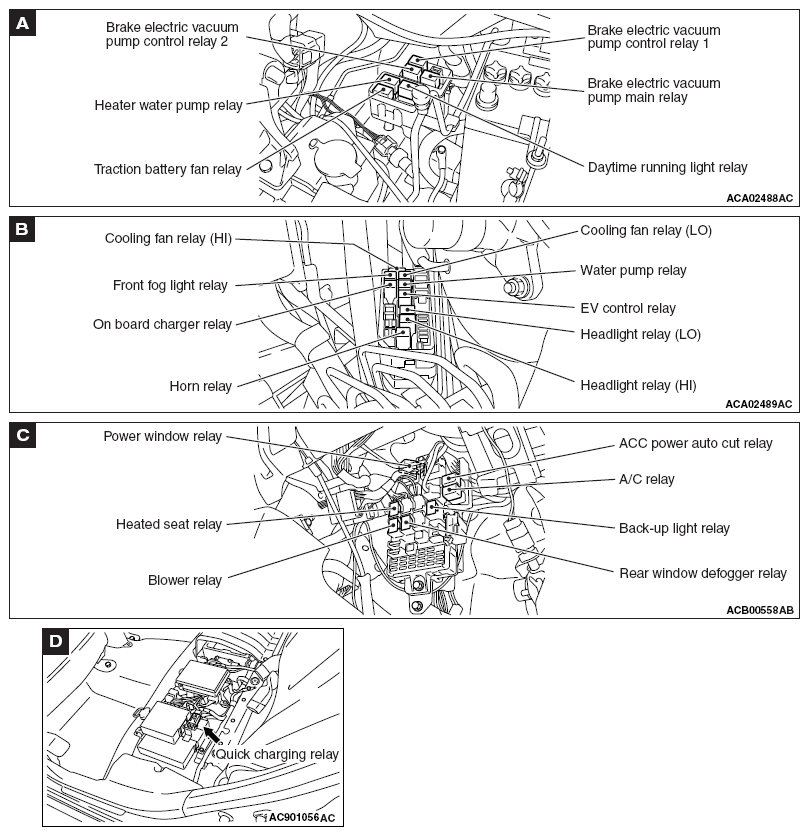

Fig 2: Identifying Relay Locations (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

RELAY IDENTIFICATION

Name	Symbol
ACC power auto cut relay	C
A/C relay	C
Back-up light relay	C
Blower relay	C
Brake electric vacuum pump control relay 1	A
Brake electric vacuum pump control relay 2	A
Brake electric vacuum pump main relay	A
Cooling fan relay (HI)	B
Cooling fan relay (LO)	B
Daytime running light relay A	A
EV control relay	B
Front fog light relay	B
Headlight relay (HI)	B
Headlight relay (LO)	B
Heated seat relay	C
Heater water pump relay	A
Horn relay	B
Traction/Main Drive Lithium-Ion battery fan relay	A
On board charger relay	B
Power window relay	C
Quick charging relay	D
Rear window defogger relay	C
Water pump relay	B
