Removal And Installation: Notes

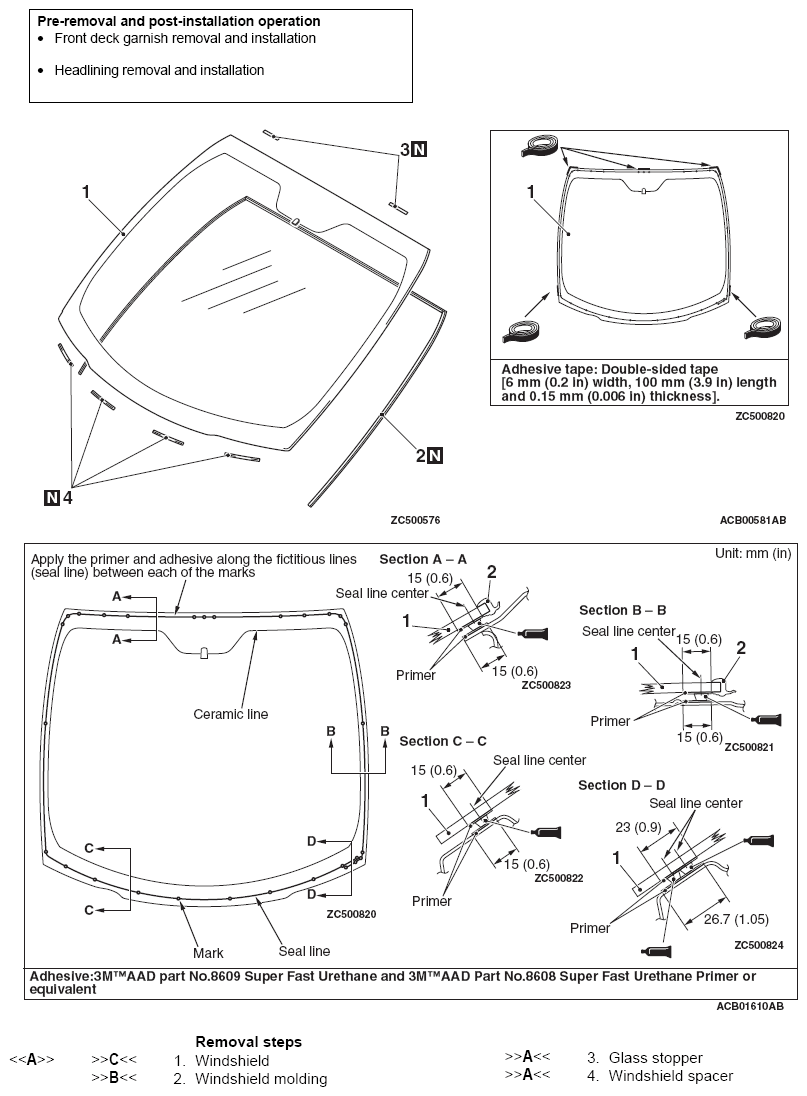

Fig 1: Removing Order Of Windshield Components

G08301195

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
