Removal And Installation: Notes

CAUTION:

• Before removing the steering wheel, driver's air bag module assembly and Knee Air Bag Module, refer to SERVICE PRECAUTIONS , DRIVER'S AIR BAG MODULE AND CLOCK SPRING < EXCEPT RALLIART > , DRIVER'S AIR BAG MODULE AND CLOCK SPRING < RALLIART > and KNEE AIR BAG MODULE .
• After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to STEERING WHEEL SENSOR CALIBRATION ). < Vehicles with ASC >

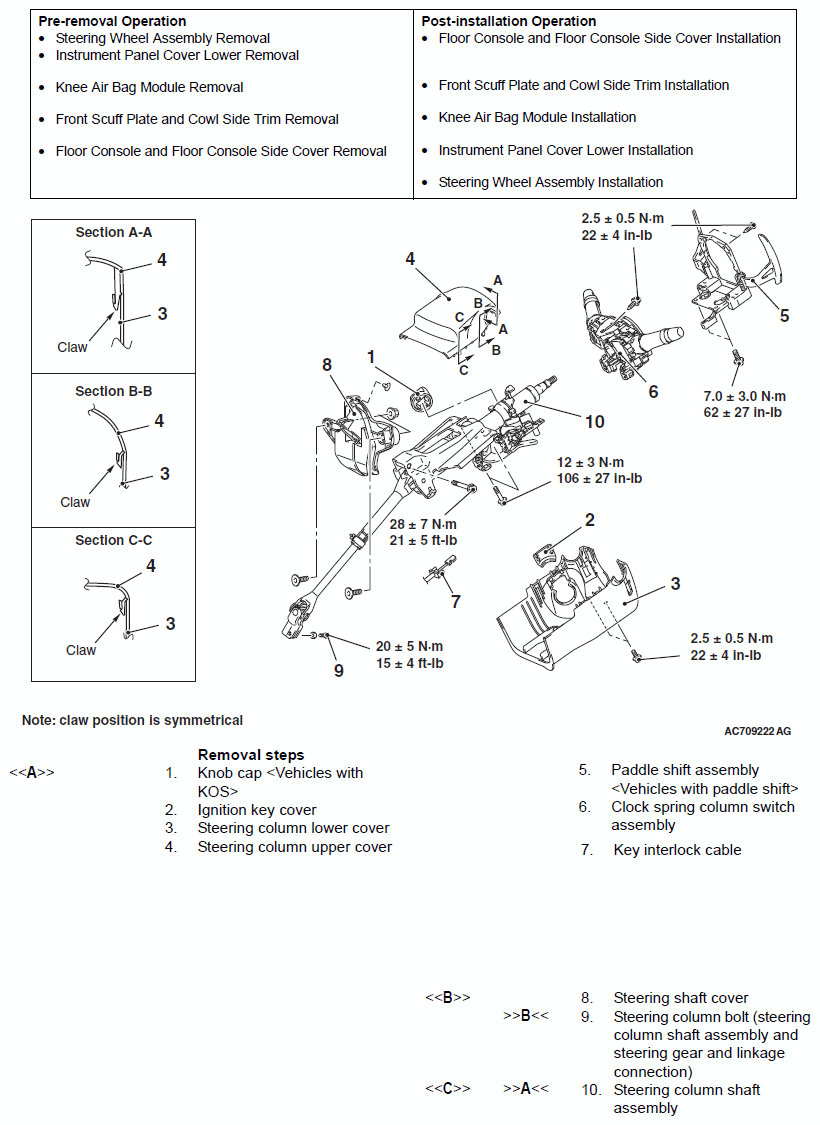

Fig 1: Removing/Installing Steering Column Shaft Assembly With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
