Splash Shield - Lancer Evolution
›
Removal And Installation
Removal And Installation

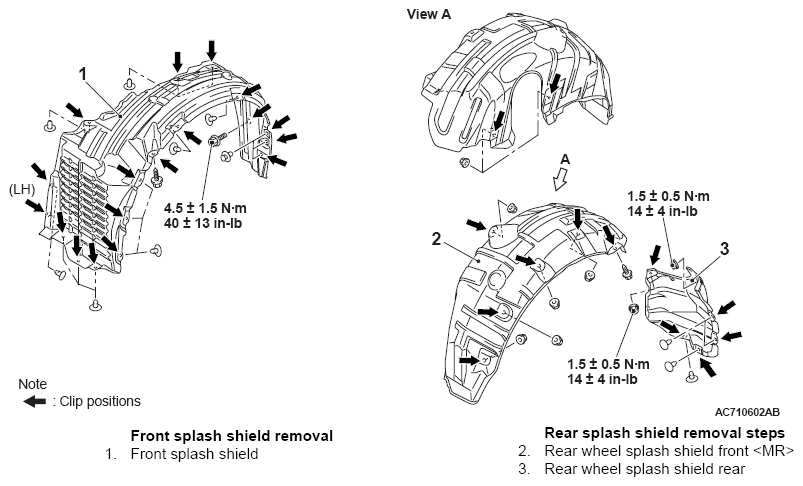

Fig 1: Removing/Installing Splash Shield With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
