Window Glass - Lancer Evolution
›
Specification(S)
›
General
›
Window Glass Installation
Window Glass Installation
CAUTION:
Do not apply primer on the adhesion surface, as adhesion may be reduced.

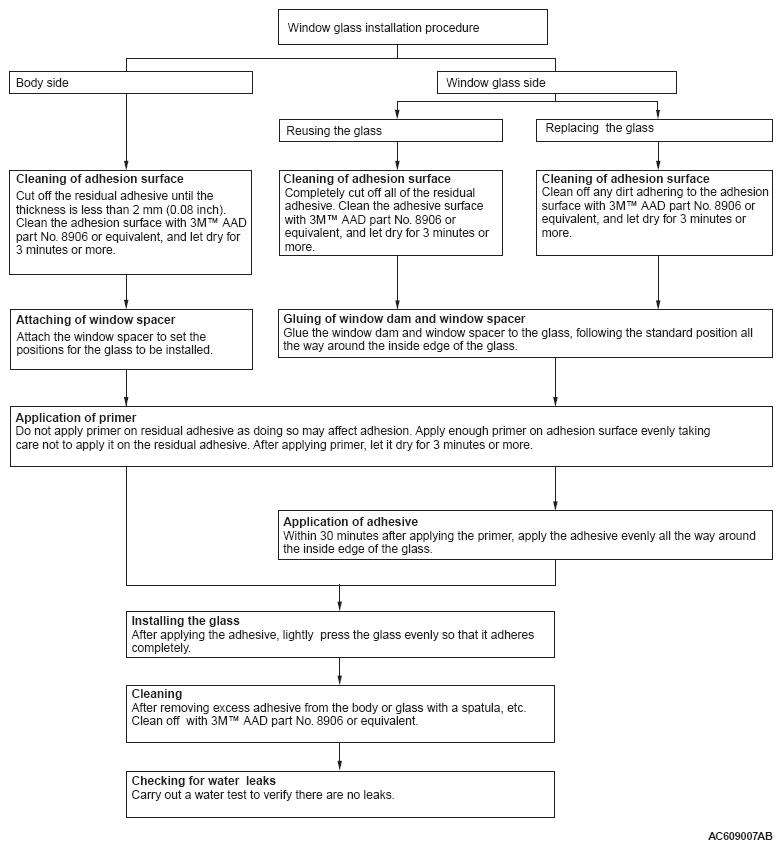

Fig 1: Window Glass Installation Flow Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
