Mitsubishi
›
2015
›
Lancer Evolution Final Edition
›
Repair and Diagnosis
›
Electrical
›
Charging Systems
›
Charging System - Lancer Evolution
›
Generator Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes

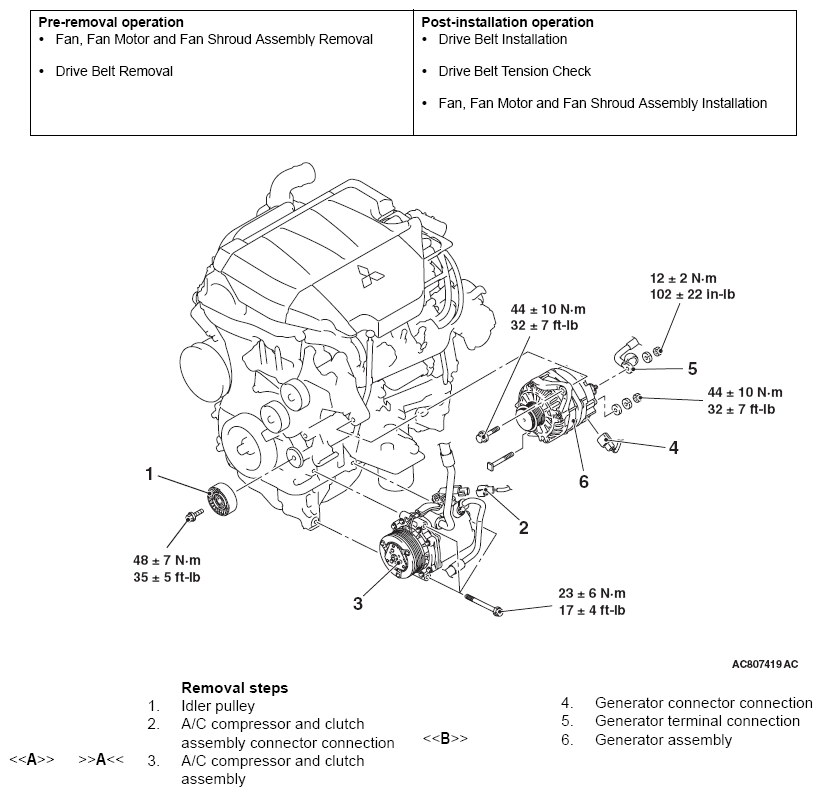

Fig 1: Removing/Installing Generator Assembly With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
