Component Locations - Lancer Evolution
›
Other Devices
Other Devices
Name
Symbol
A/C compressor clutch assembly (incorporating A/C refrigerant temperature switch)
B
Power steering pressure switch
A

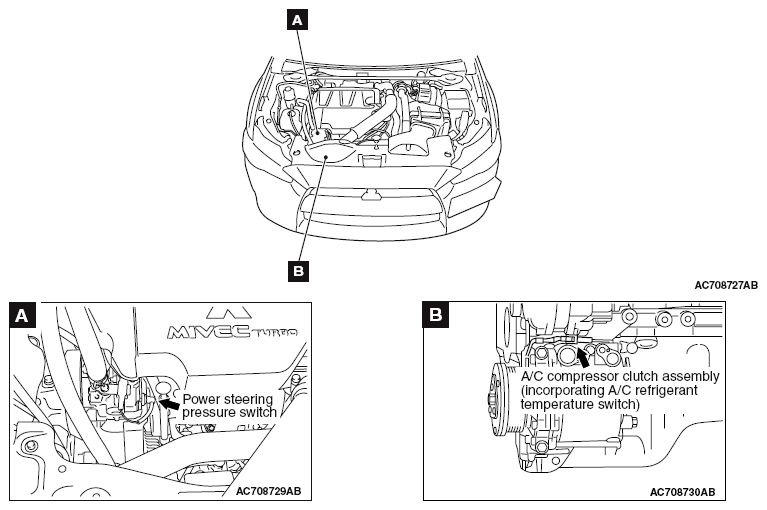

Fig 1: A/C Compressor Clutch Assembly And Power Steering Pressure Switch Locations
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
