Removal And Installation (2.0L Engine Turbo): Notes

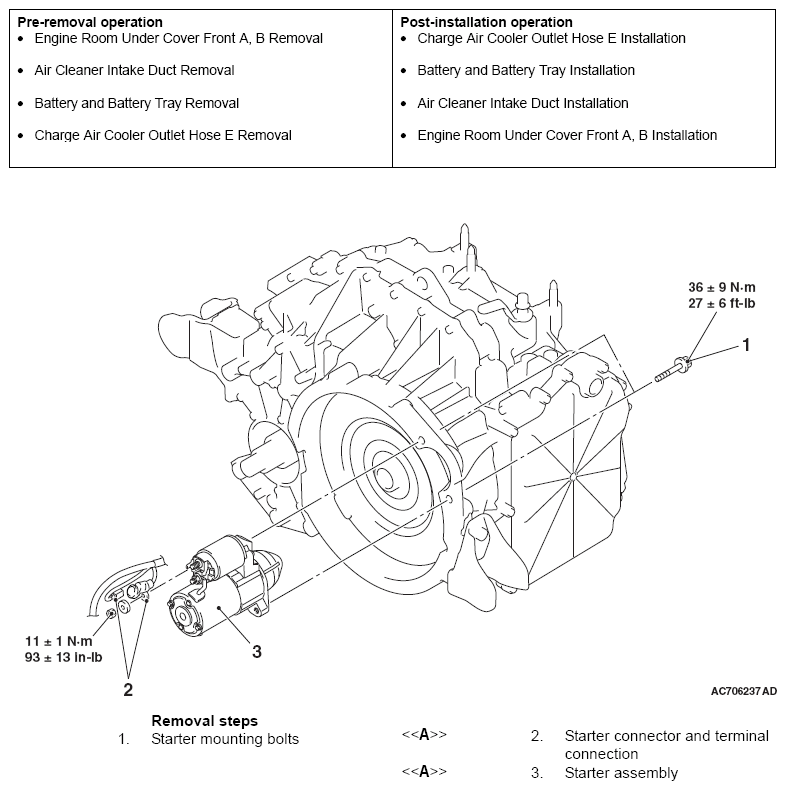

Fig 1: Removing/Installing Starter Motor Assembly Components With Torque Specifications - 2.0L Engine Turbo
G09625393Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
