Ignition System
›
Camshaft Position Sensor
›
Removal And Installation (2.0L Engine Turbo)
Removal And Installation (2.0L Engine Turbo)

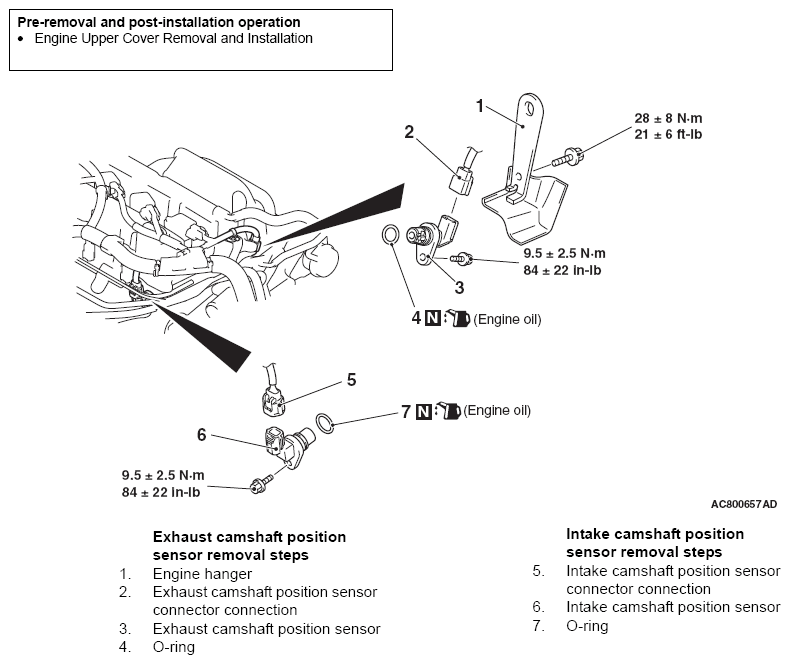

Fig 1: Removing/Installing Camshaft Position Sensor Components With Torque Specifications - 2.0L Engine Turbo
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
