Removal And Installation (2.0L Engine Non-Turbo, 2.4L Engine)

CAUTION:

• When the knock sensor replacement is performed, use scan tool MB991958 to initialize the learning value (Refer to INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE .)
• Do not drop or hit the knock sensor against other components. Internal damage may result, and the knock sensor will need to be replaced.

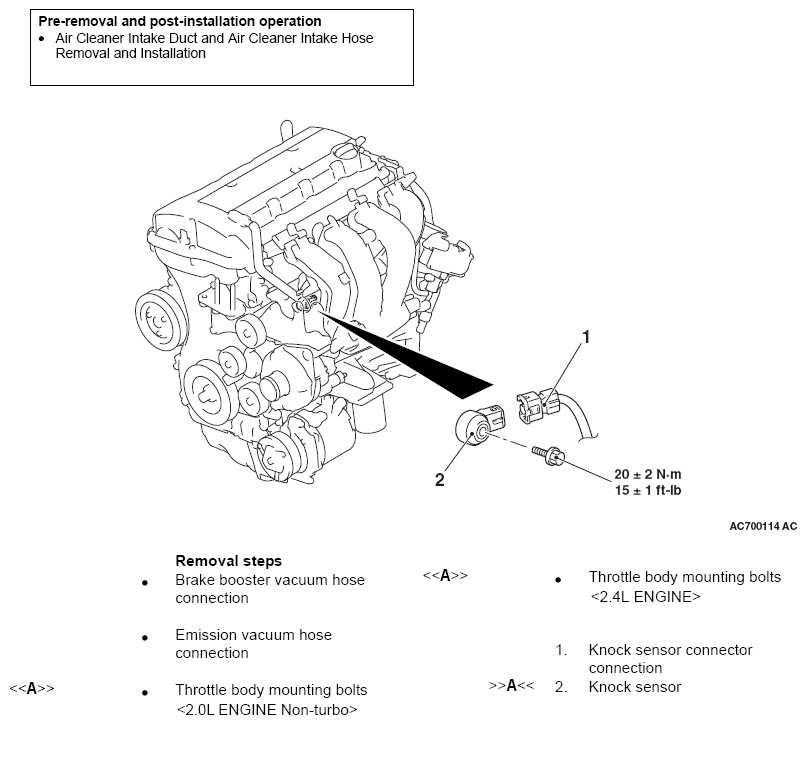

Fig 1: Removing/Installing Knock Sensor Components With Torque Specifications - 2.0L Engine Non-Turbo, 2.4L Engine

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
