Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

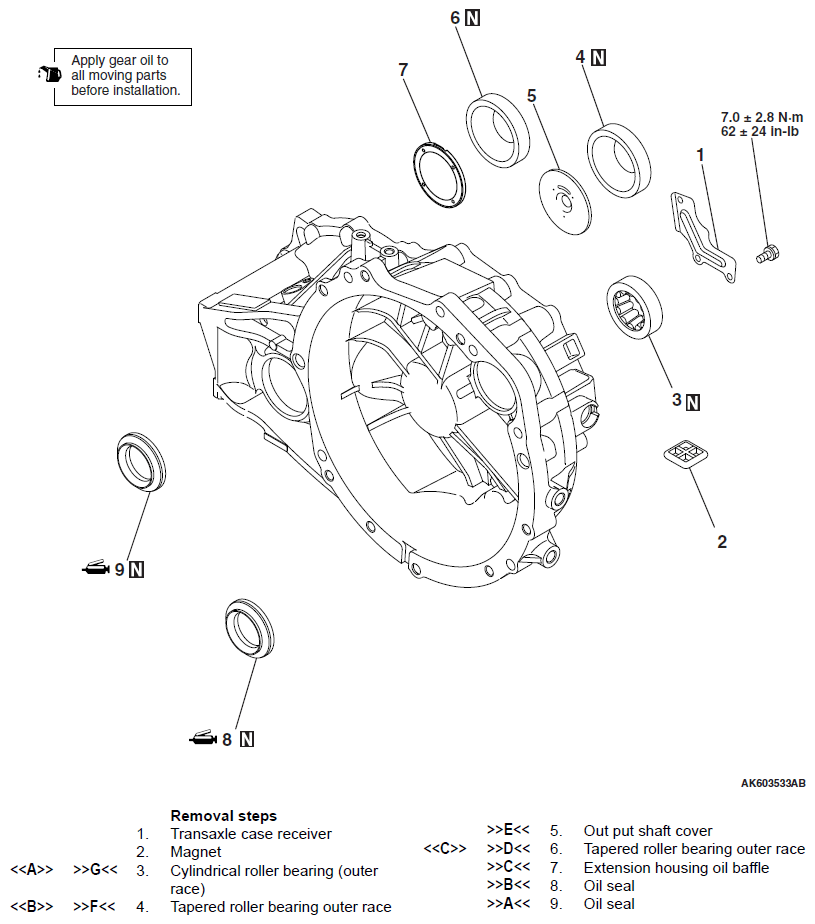

Fig 1: Disassembling/Assembling Clutch Housing Components With Torque Specification

G09625698

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990211: Slide hammer
MB992039: Slide hammer puller
MD998200: Oil seal installer
MD998550: Extension housing seal installer
MB991445: Bush remover & installer base
MB990938: Installer bar
MD999547: Oil seal installer
MB990699: Differential oil seal installer
