Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

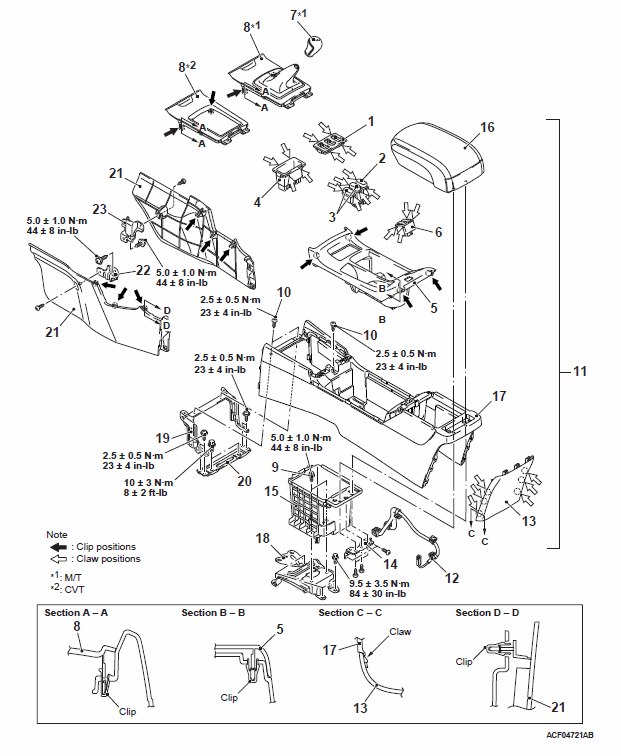

Fig 1: Exploded View Of Floor Console Assembly With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For 2016:

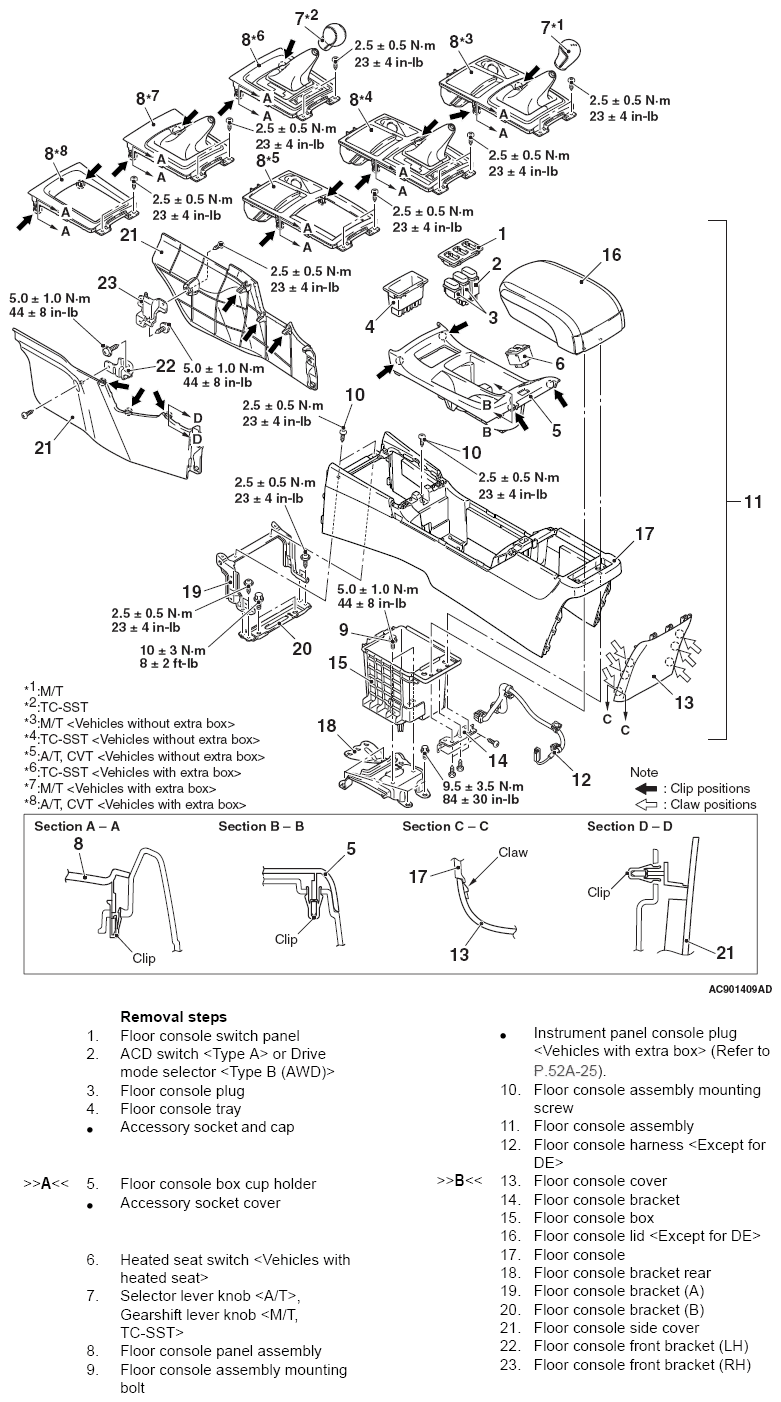

Fig 2: Exploded View Of Floor Console Assembly With Torque Specifications (2016) (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Exploded View Of Floor Console Assembly With Torque Specifications (2016) (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
