Removal And Installation
WARNING: This page is about a different variant/trim than selected.
WARNING:
For removal and installation of the passenger's side air bag module always observe the service procedures described in Supplemental Restraint System (SRS) article. Refer to
SERVICE PRECAUTIONS
,
PASSENGER'S (FRONT) AIR BAG MODULE
,
DRIVER'S AIR BAG MODULE AND CLOCK SPRING < EXCEPT RALLIART >
,
DRIVER'S AIR BAG MODULE AND CLOCK SPRING < RALLIART >
.

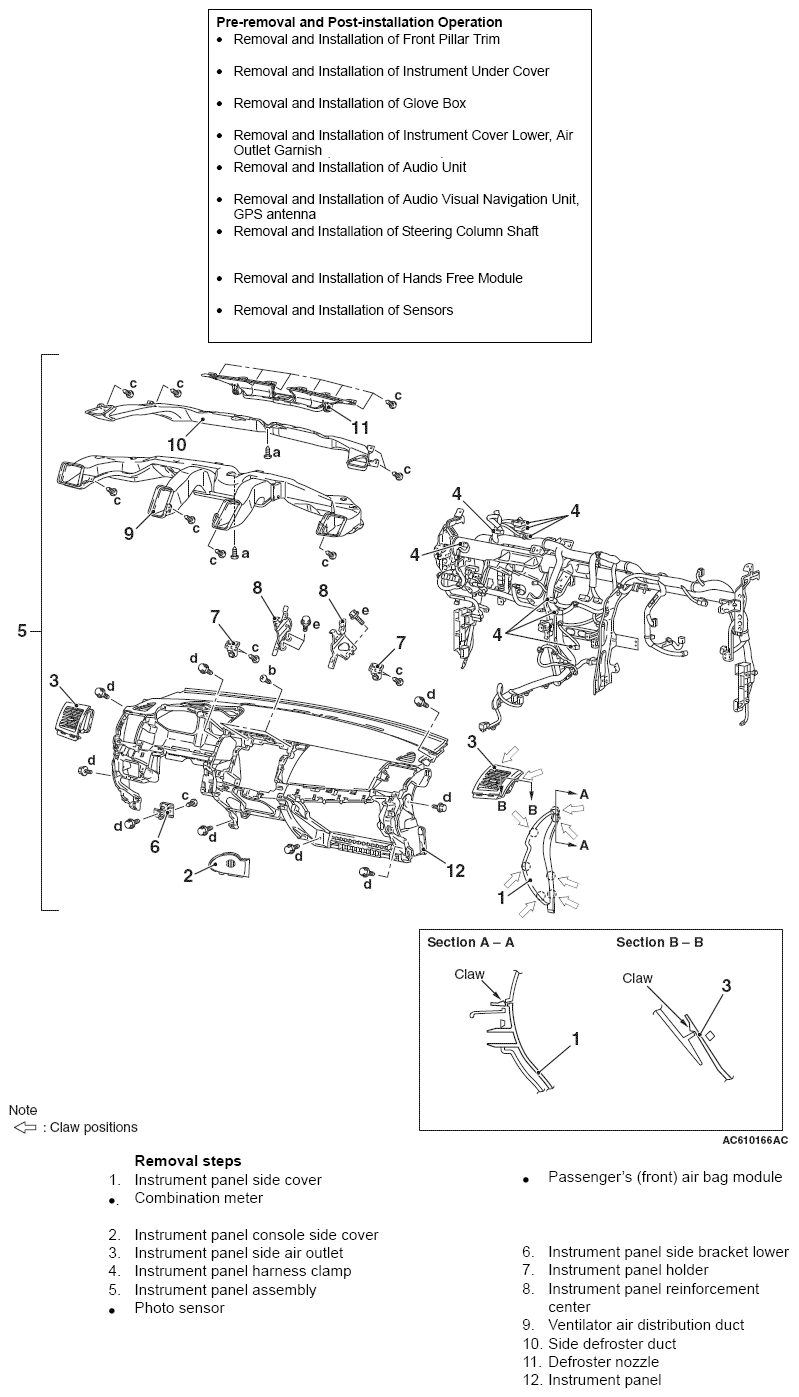

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the information of "Removal and Installation" and "Disassembly and Assembly."
| Name | Symbol | Size (D x L) mm | Color | Shape |
|---|---|---|---|---|
| Tapping screw | a | 5x12 | - | |
| b | 5x16 | - | ||
| c | 5x12 | - | ||
| Bolt with washer | d | 5x20 | - | |
| e | 6x16 | - | ||
| D: Thread diameter, L: Effective thread length | ||||
CAUTION:
- Refer to SERVICE PRECAUTIONS , DRIVER'S AIR BAG MODULE AND CLOCK SPRING < EXCEPT RALLIART > , DRIVER'S AIR BAG MODULE AND CLOCK SPRING < RALLIART > , and PASSENGER'S (FRONT) AIR BAG MODULE .
- Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.
