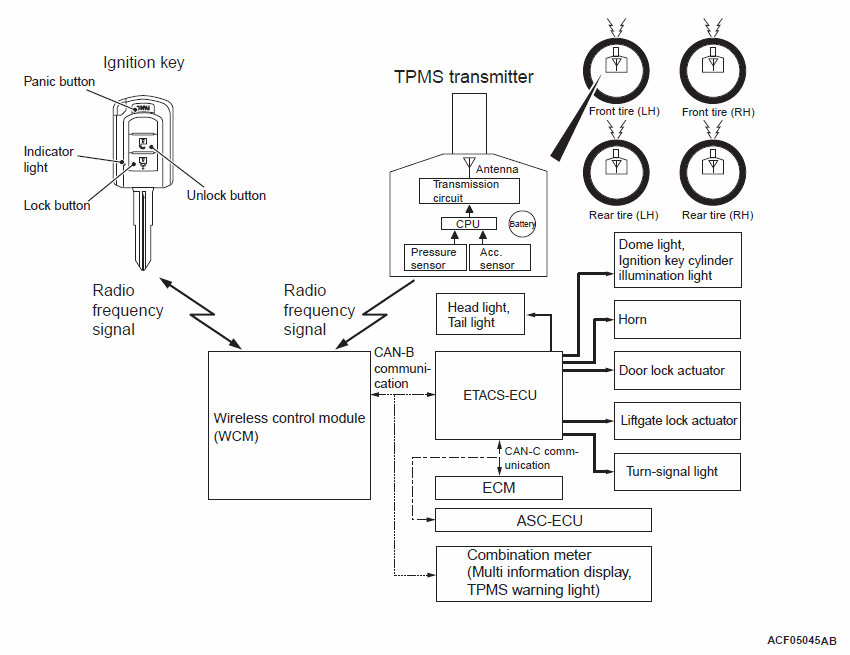

Fig 1: Wireless Control Module - System Diagram (Lancer Sportback)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For 2016:

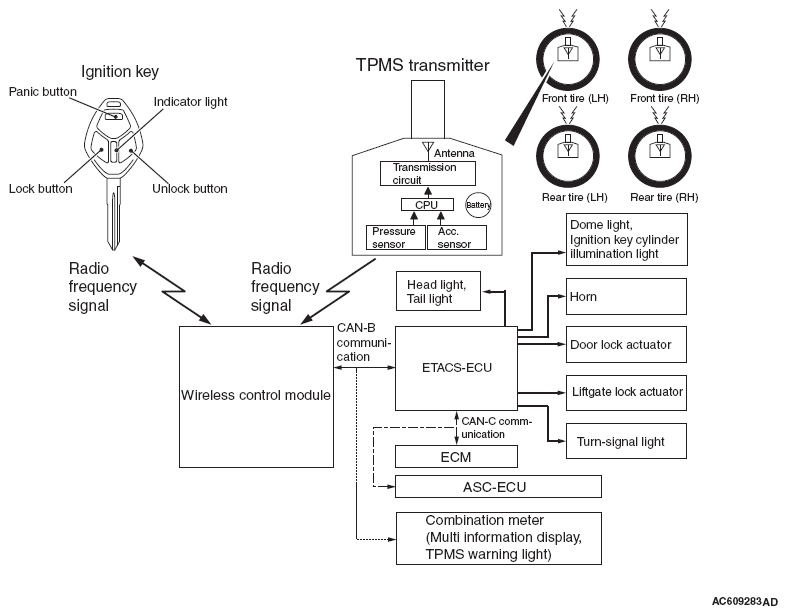

Fig 2: Wireless Control Module - System Diagram (Lancer Sportback) (2016)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: In case of replacement of WCM, all keyless ID, key ID and tire pressure sensor ID should be re-registered using scan tool MB991958 (M.U.T.-III sub-assembly).
