System Configuration: Lancer

WARNING: This page is about a different variant/trim than selected.

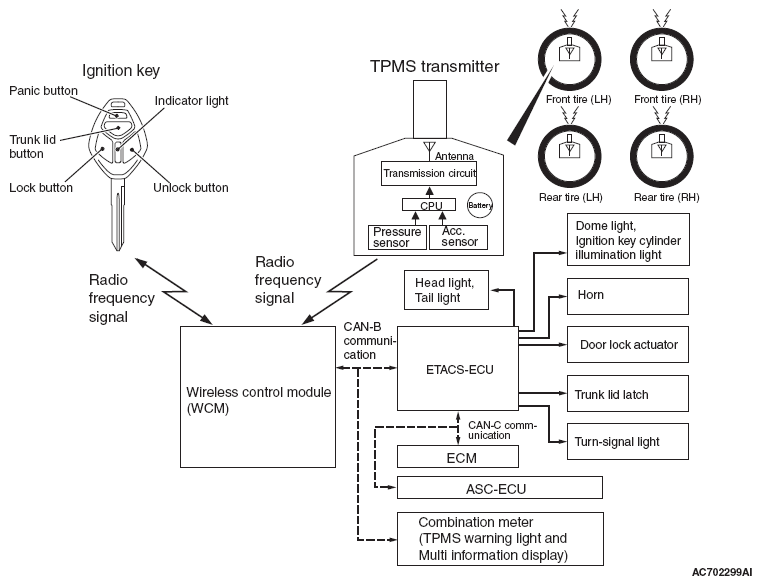

Fig 1: Wireless Control Module - System Diagram (Lancer)
G09627925Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For 2016:

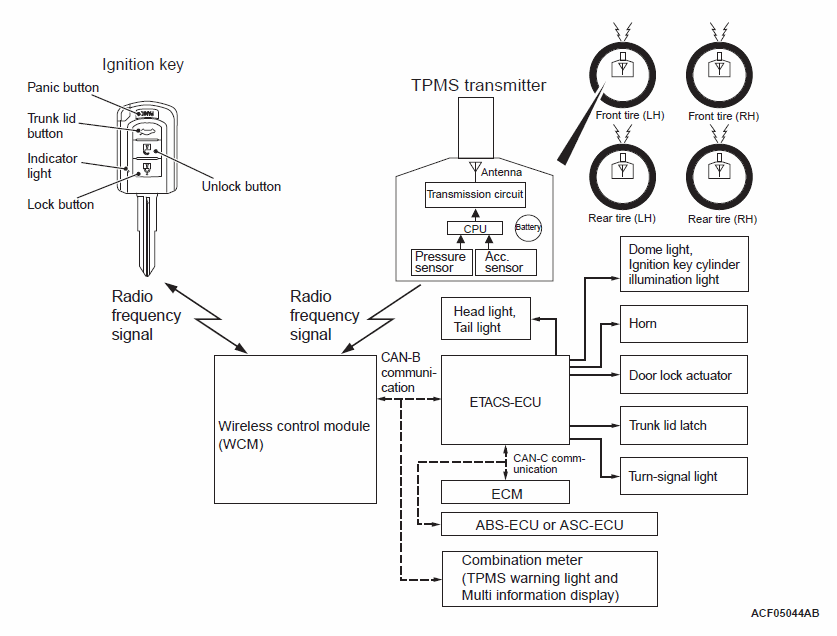

Fig 2: Wireless Control Module - System Diagram (Lancer) (2016)
G00563138Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
