Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.
WARNING: Certain components of this vehicle, such as coin-type lithium battery may contain perchlorate materials. Before deployment and/or disposal of these components, review and comply with all applicable Federal, state and local regulations.

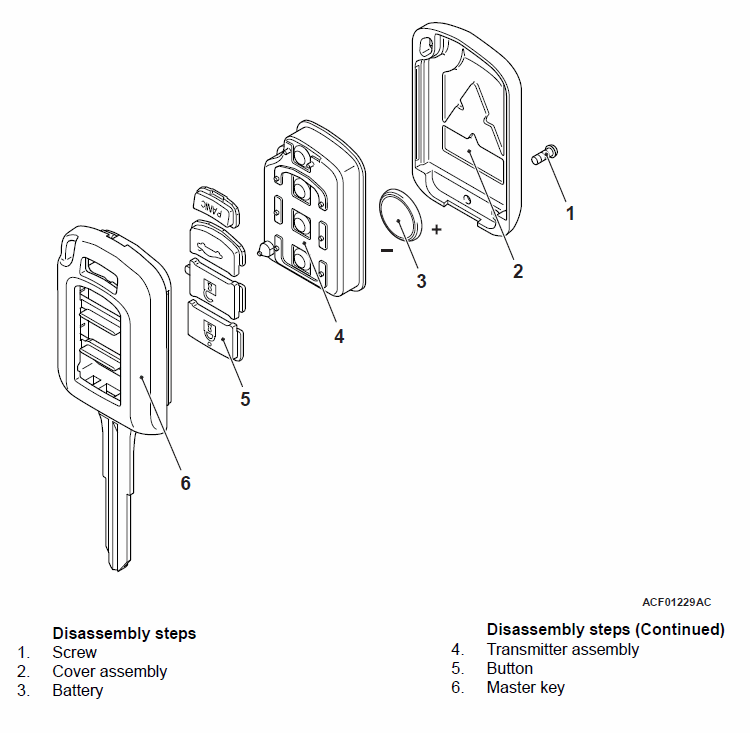

Fig 1: Disassembling/Assembling Wireless Control Key Transmitter
G00563140Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
