Disassembly And Assembly

WARNING: This page is about a different variant/trim than selected.

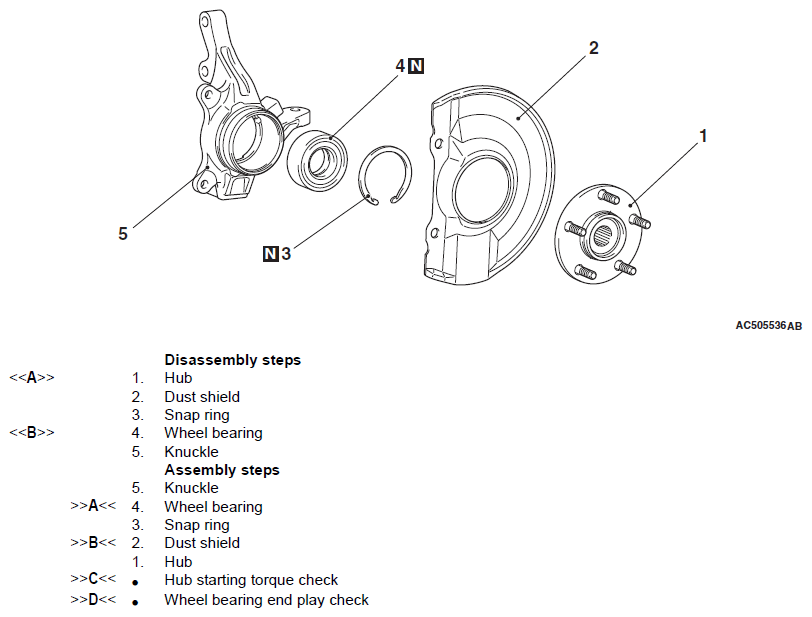

Fig 1: Disassembling/Assembling Front Axle

G09626518

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990326: Preload Socket
MB990685: Torque Wrench
MB990890: Rear Suspension Bushing Base
MB990935: Installer Adapter
MB990938: Installer Bar
MB991000: Spacer
MB991017: Front Hub Remover and Installer
MB991355: Knuckle Arm Bridge
MB991388: Bush Remover Base
MB991576: Base
MB992150: Oil Seal Installer
MB992250: Knuckle Arm Bridge Attachment
MD999528: Adapter
MD998801: Remover
MD998812: Installer Cap
MD998813: Installer
