Removal And Installation: Notes

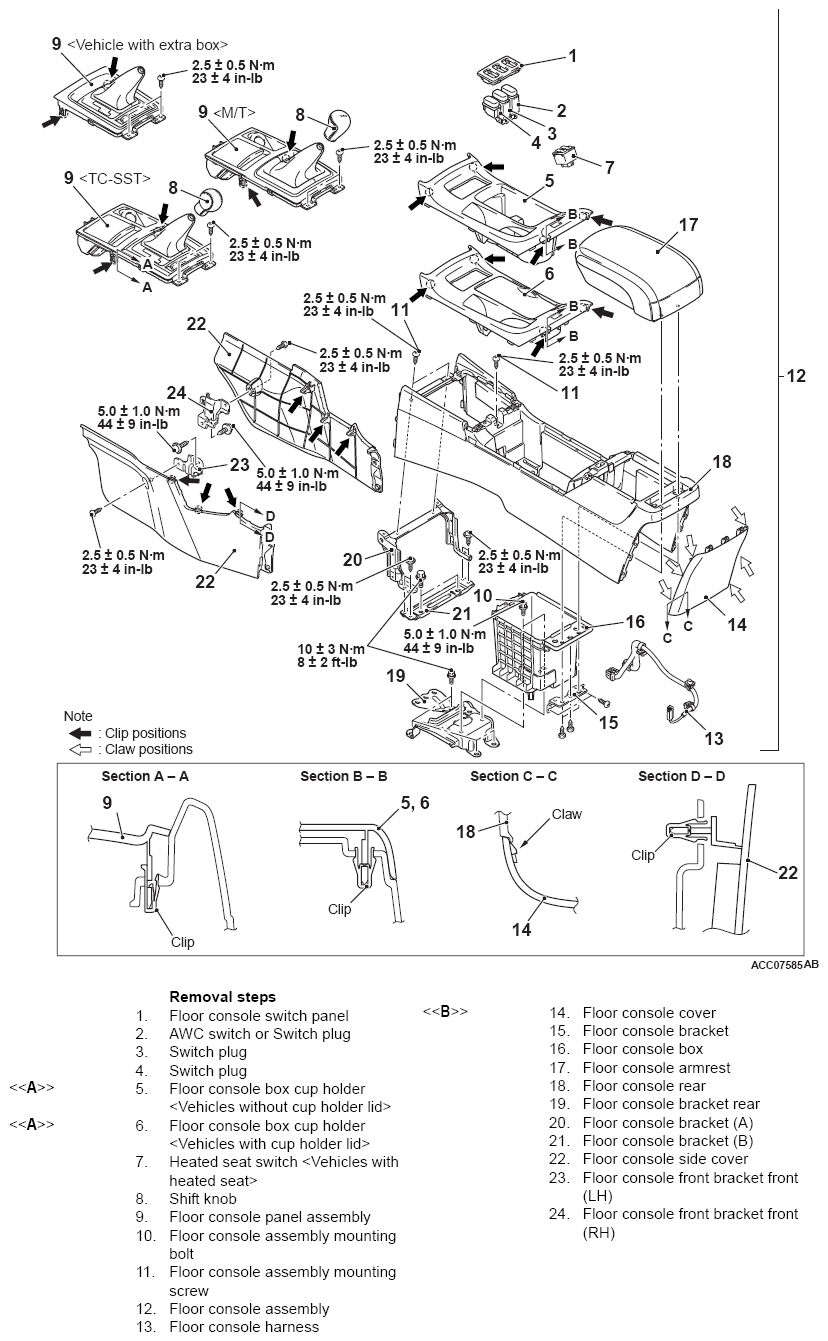

Fig 1: Removing/Installing Floor Console Assembly
G09651705Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
