Notes
Disassembly And Assembly: Notes

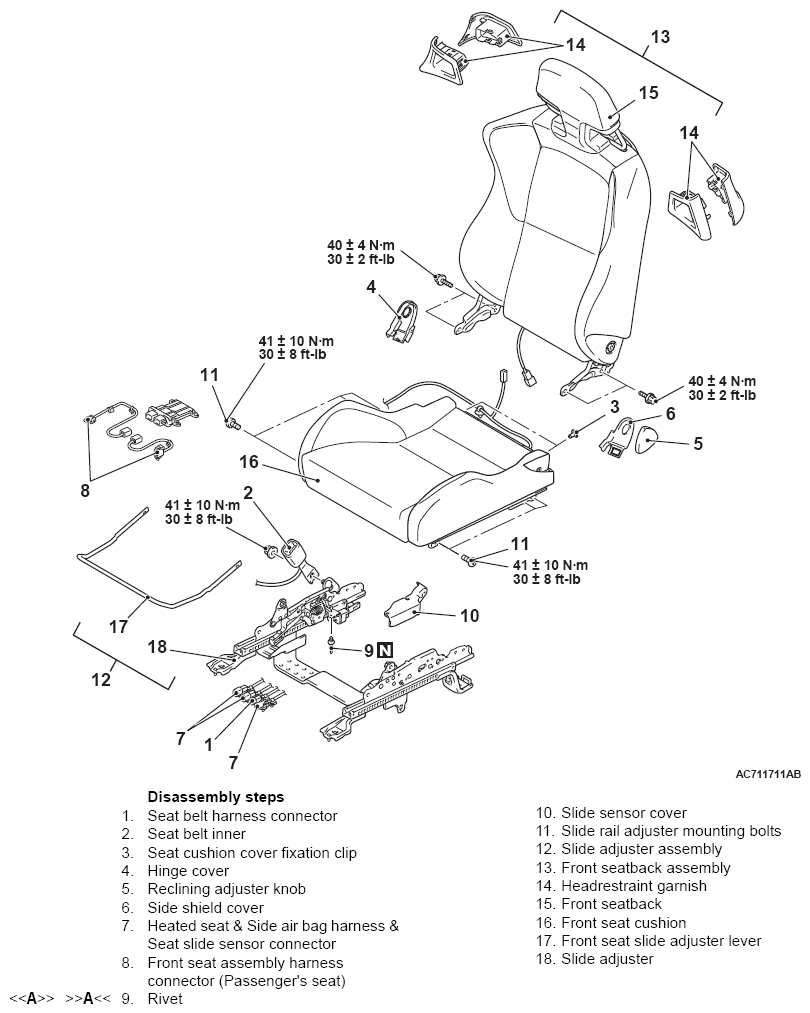

Fig 1: Disassembling/Assembling Seat Assembly With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
