Heated Seat Relay Continuity Check

Battery voltage	Tester connection	Specified condition
Not applied	3 - 4	Open circuit
Connect terminal 2 to the positive battery terminal Connect terminal 1 to the negative battery terminal		Continuity exists (2Ω or less)

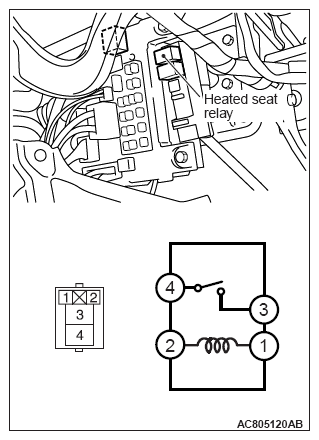

Fig 1: Heated Seat Relay Location

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
