Restraints
›
Passive Restraints
›
Interior - Lancer Evolution
›
Seat Assembly
›
Rear Seat Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes

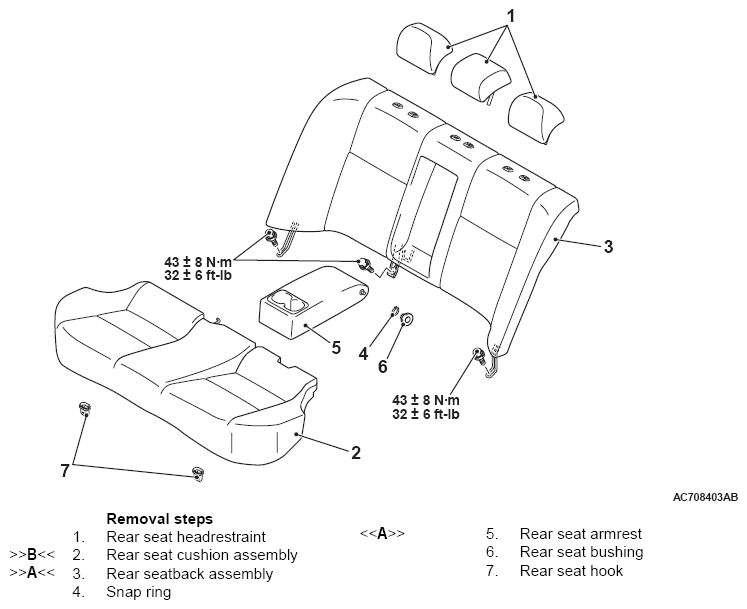

Fig 1: Removing/Installing Rear Seat Assembly Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
