Clip Position
Clip Position

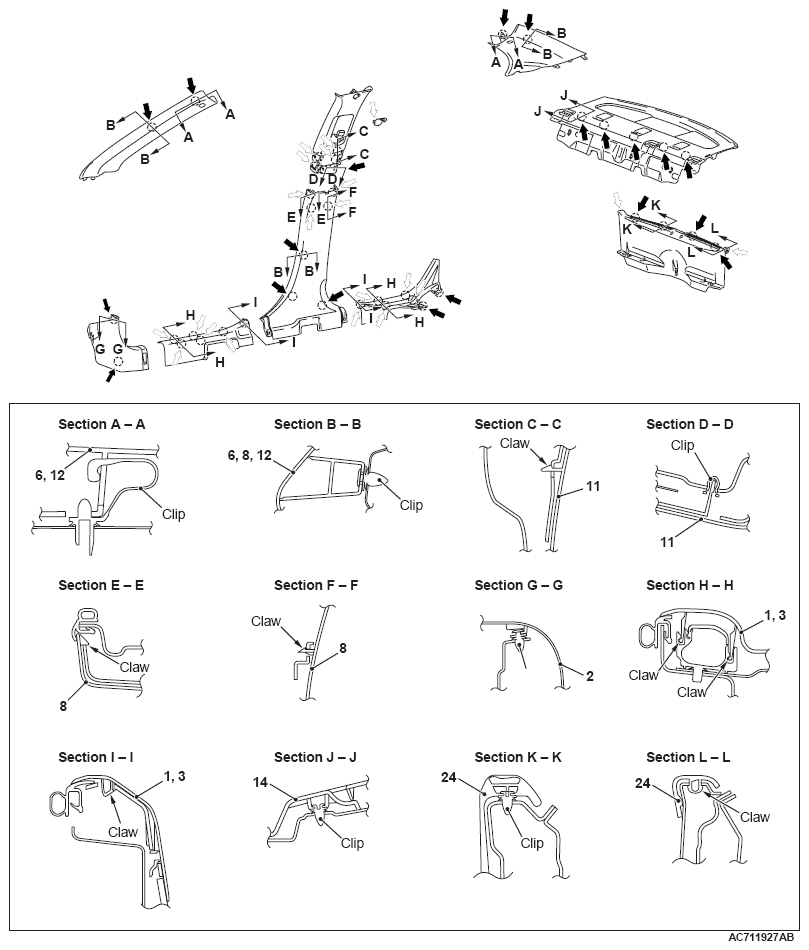

Fig 1: Clip Installation Positions
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
Each number in the illustration indicates a part number.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
