Clutch On-Vehicle Service - Lancer Evolution
›
Clutch Control
›
Removal And Installation
›
Notes
Removal And Installation: Notes

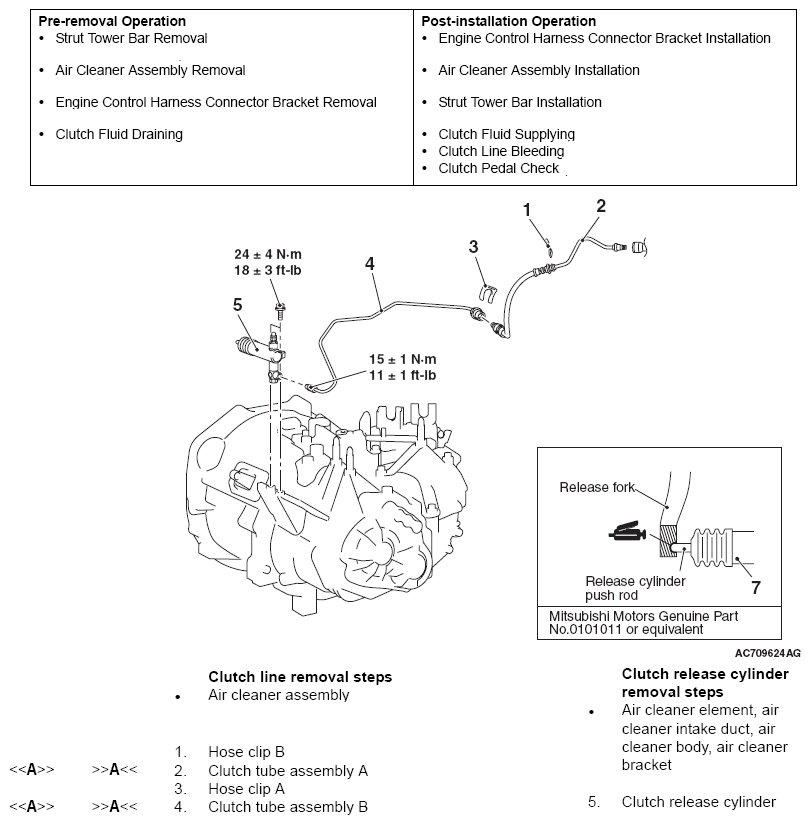

Fig 1: Removing/Installing Clutch Control With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
