Manual Transaxle On-Vehicle Service - With Diagnostics - Lancer Evolution
›
Transaxle Control
›
Removal And Installation
›
Notes
Removal And Installation: Notes

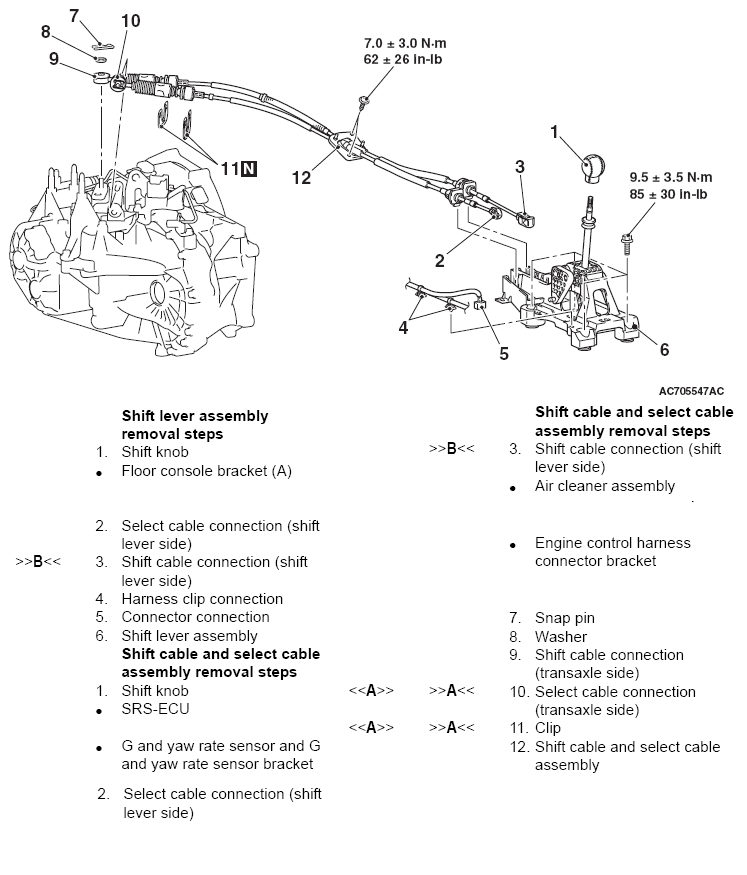

Fig 1: Removing/Installing Transaxle Control With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
