Disassembly And Assembly: Notes

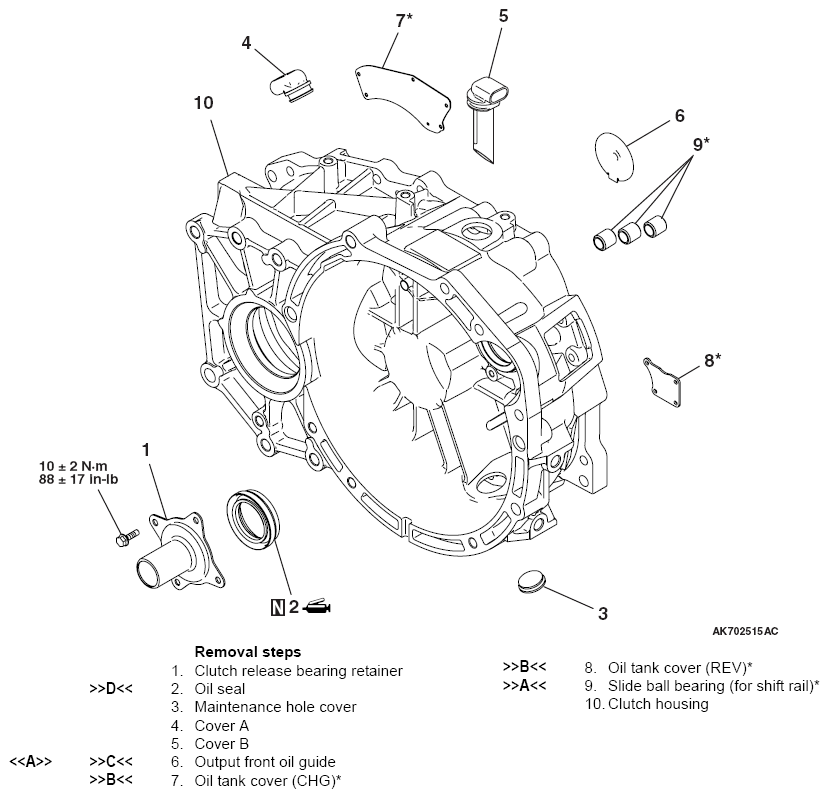

Fig 1: Disassembling/Assembling Clutch Housing With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: *Refer to the assembly service points only when the clutch housing is replaced.

Required Special Tools:
