Removal And Installation: Notes

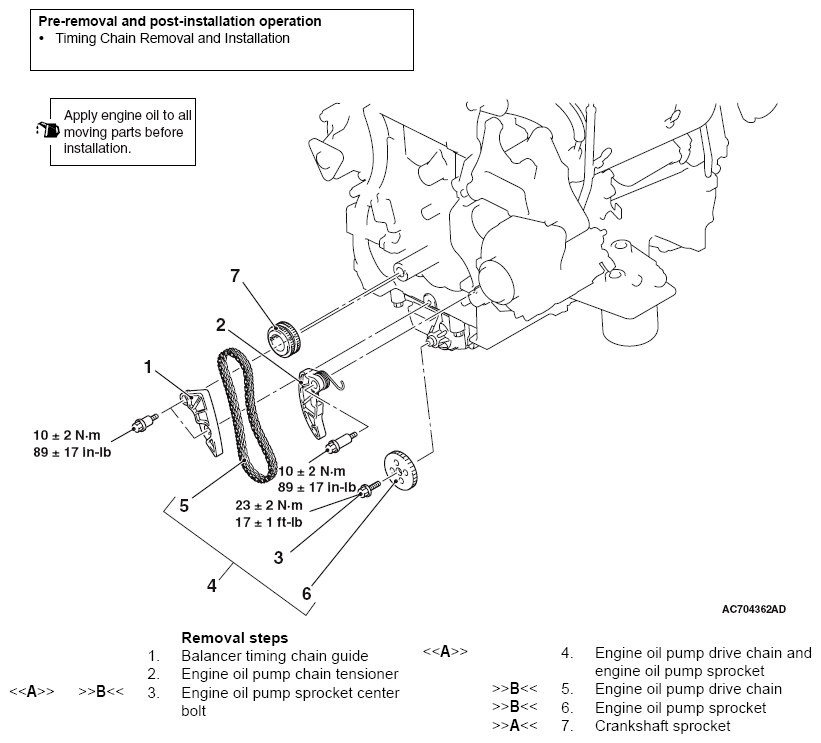

Fig 1: Oil Pump Chain & Mounting Bolts With Torque Specifications
G09639988Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
