Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Do not disassemble or throw the trunk lid gas spring into fire.
Punch a hole in the trunk lid gas spring before disposal to release the gas inside.
Ensure the trunk lid gas spring piston rod does not come into contact with foreign material.

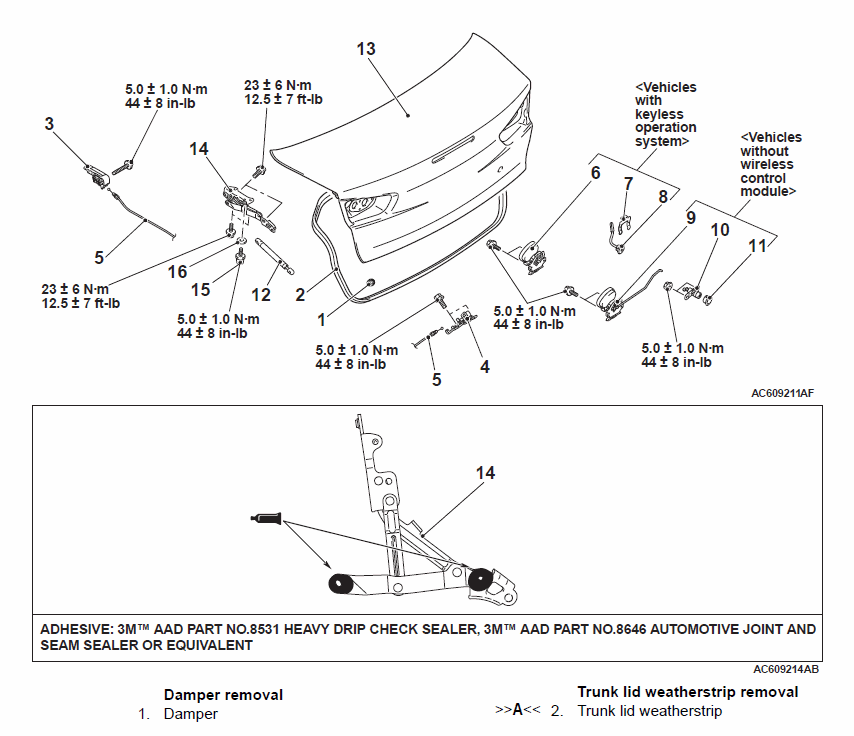

Fig 1: Removing/Installing Trunk Lid With Torque Specifications (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

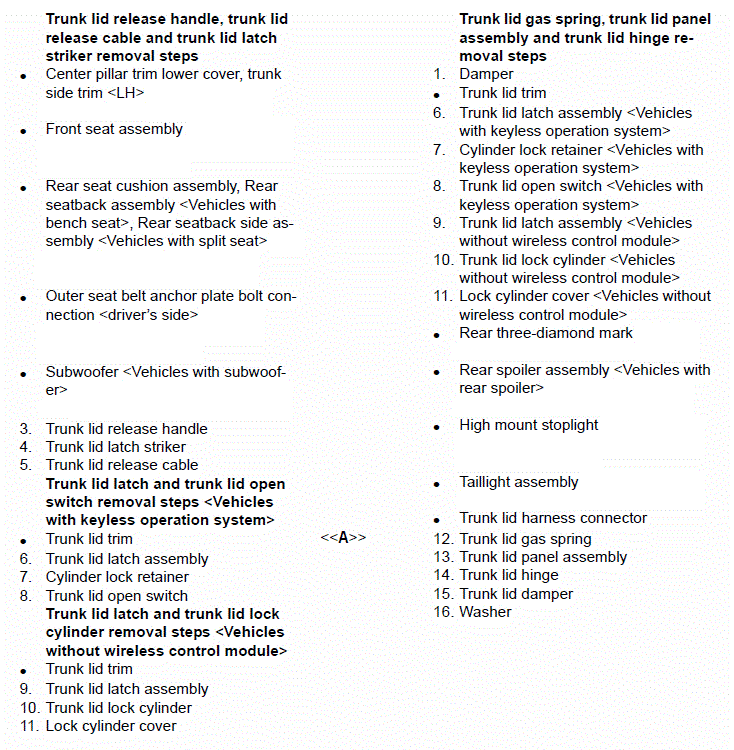

Fig 2: Removing/Installing Trunk Lid With Torque Specifications (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For 2016:

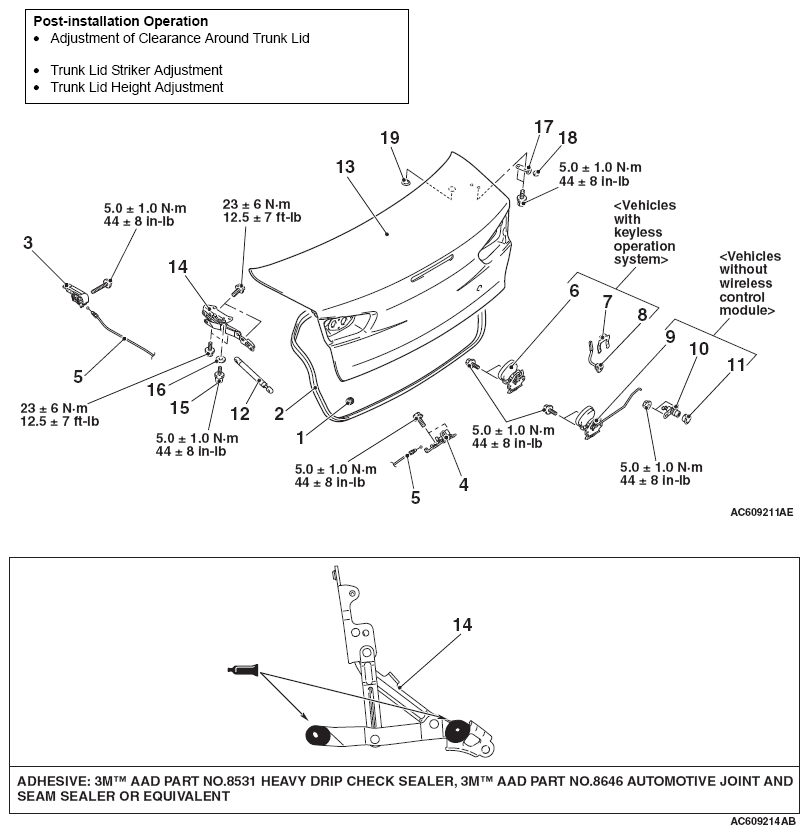

Fig 3: Removing/Installing Trunk Lid With Torque Specifications (1 Of 2) (2016)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

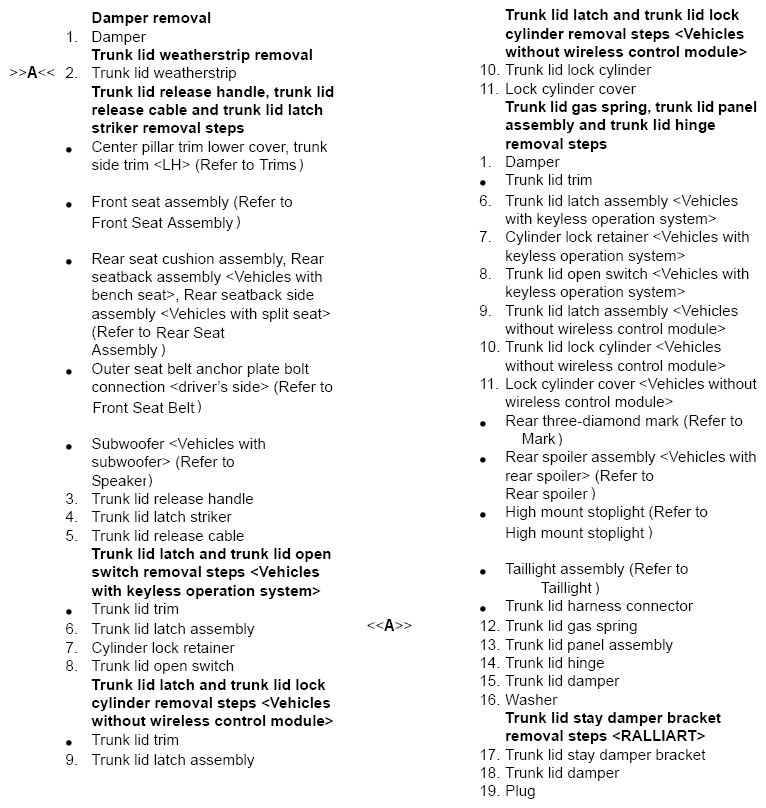

Fig 4: Removing/Installing Trunk Lid With Torque Specifications (2 Of 2) (2016)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
