Ignition System - Lancer Evolution
›
General Information
›
System Diagram
System Diagram

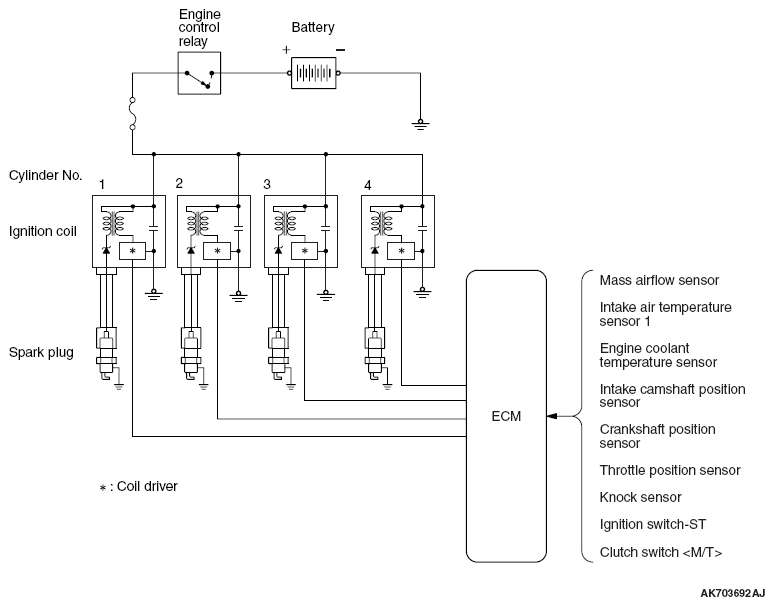

Fig 1: Ignition System Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
