Disassembly And Assembly < 15-Inch Front Disc Brake >: Notes

WARNING: This page is about a different variant/trim than selected.

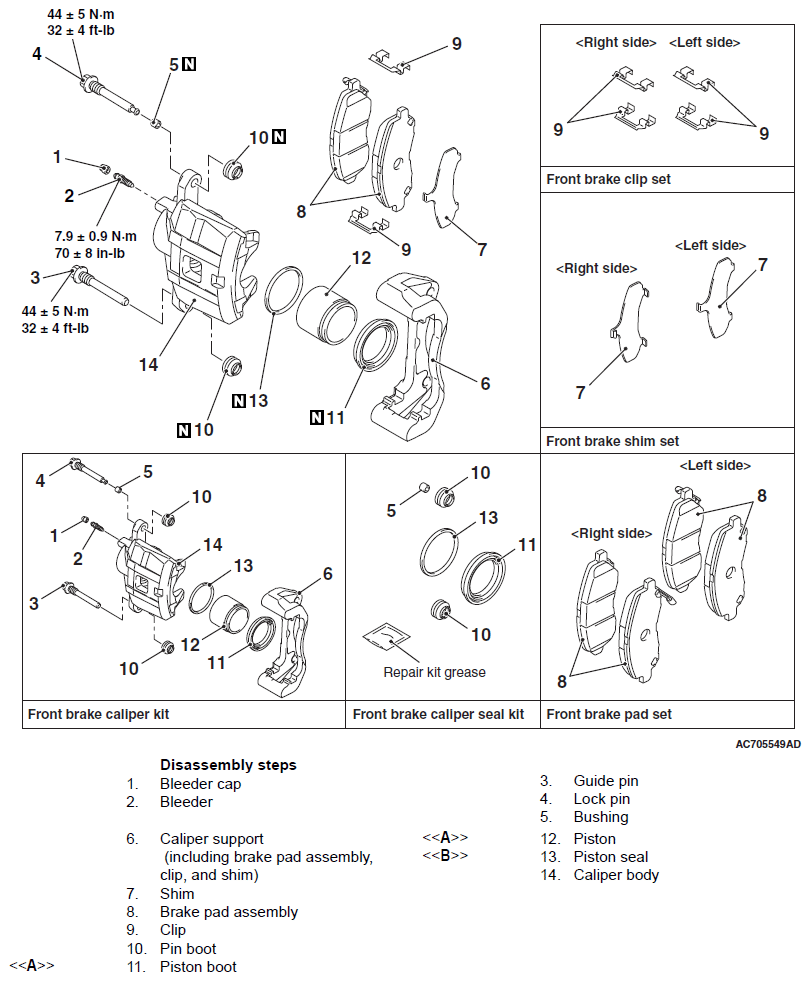

Fig 1: Disassembled And Assembled View Of 15-Inch Front Disc Brake With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Install the brake pad assembly (with wear indicator) to the inner side of the brake disc, making sure that the wear indicator is located on the top.
