Disassembly And Assembly < RALLIART >: Notes

WARNING: This page is about a different variant/trim than selected.

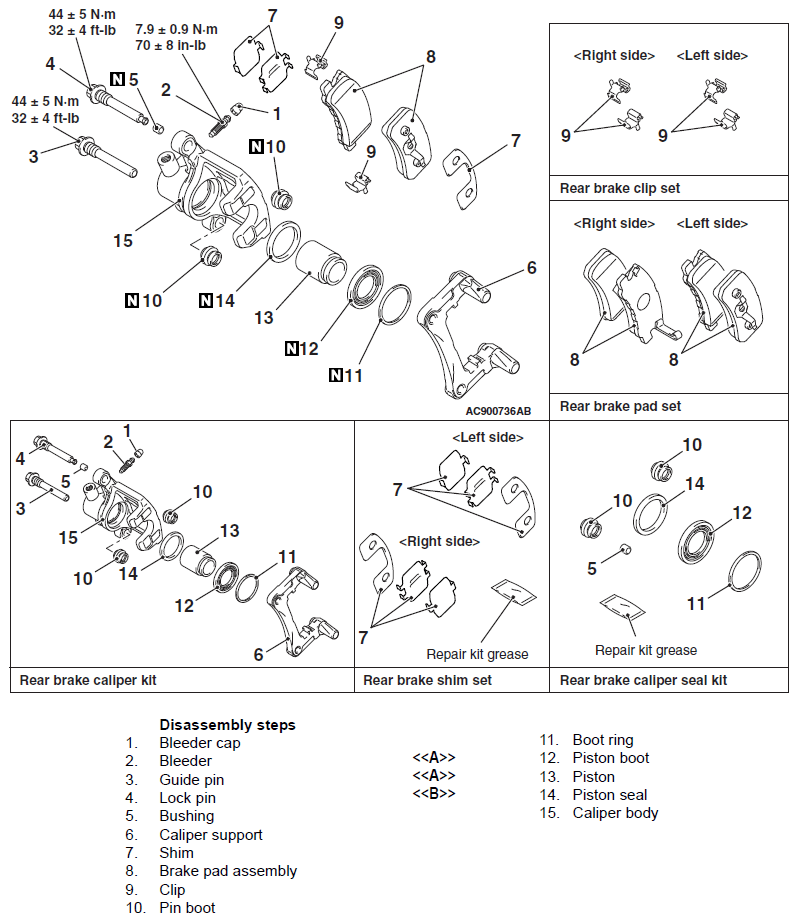

Fig 1: Disassembled And Assembled View Of Rear Disc Brake Assembly With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Install the brake pad assembly (with wear indicator) to the inner side of the brake disc, making sure that the wear indicator is located on the bottom.
