Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched. And if there is brake fluid on the caliper, wipe it off quickly.

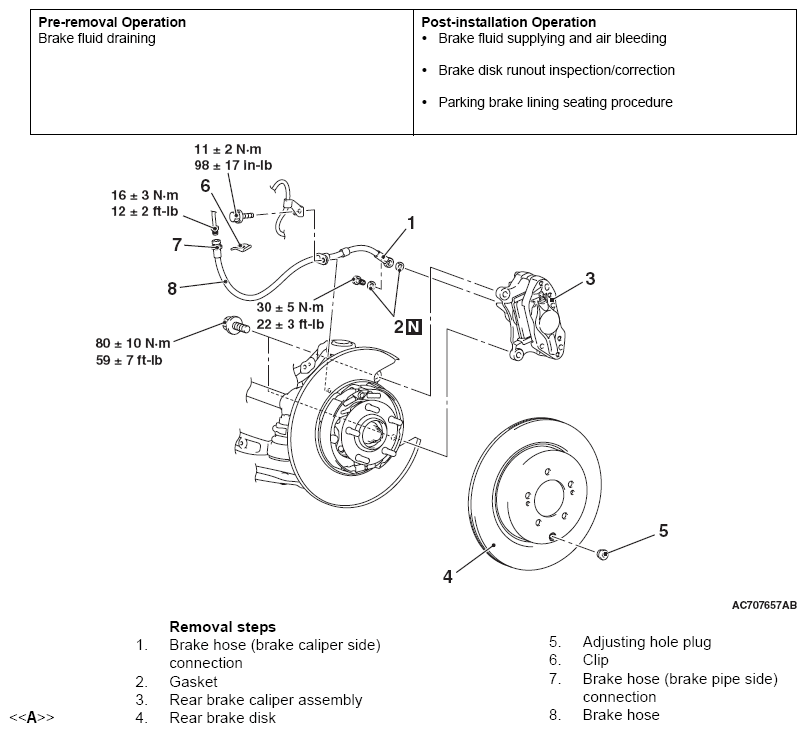

Fig 1: Removal/Installation Of Rear Disc Brake Components With Torque Specifications
G09650805Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
