Notes
Removal And Installation: Notes
CAUTION:
Before removing the front seat assembly, refer to
SERVICE PRECAUTIONS
and
DRIVER'S AIR BAG MODULE AND CLOCK SPRING
.

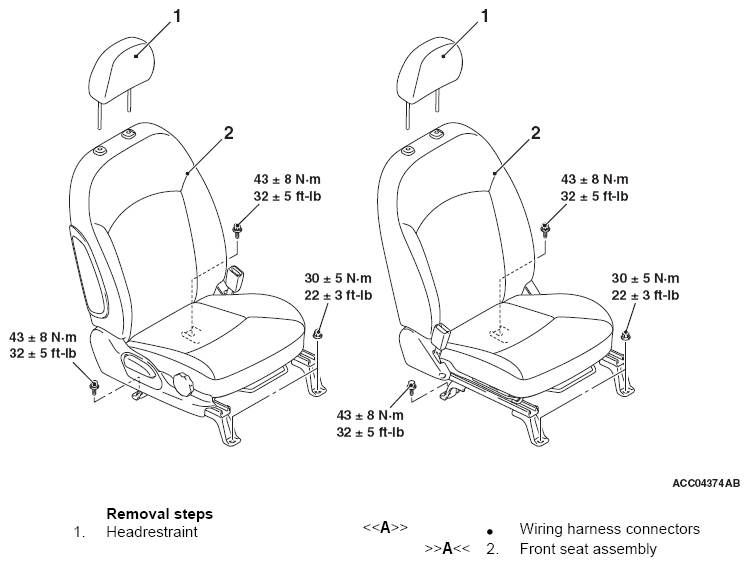

Fig 1: Removing/Installing Front Seat Assembly Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
