Fuel Pump Module

NOTE: For the removal and installation procedures, refer to REMOVAL AND INSTALLATION  .

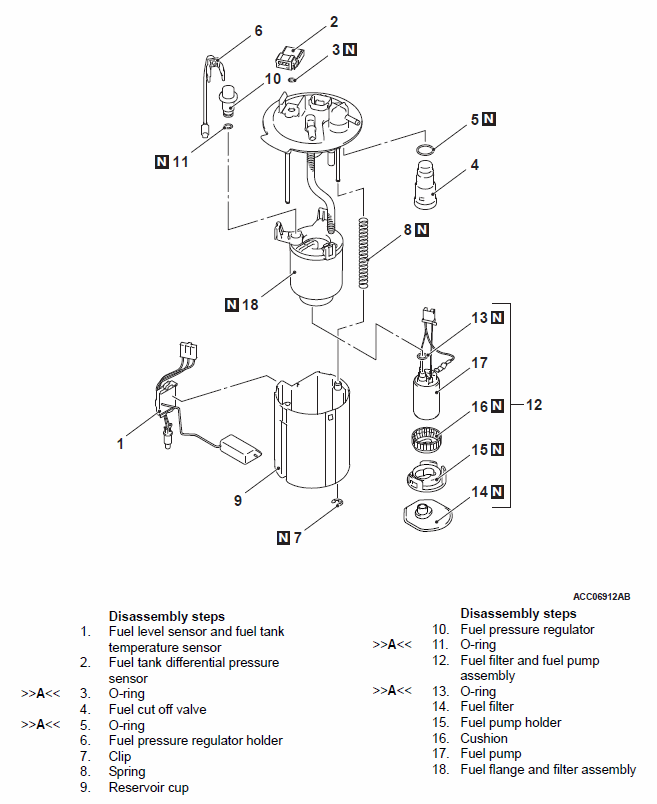

Fig 1: Disassembled And Assembled View Of Fuel Pump Module
G00562265Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
