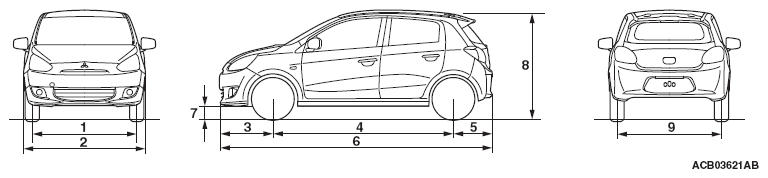

| Vehicle dimension mm (in) |
Front track |
1 |
1, 430 (56.3) |
1, 430 (56.3) |
| Overall width |
2 |
1, 665 (65.6) |
1, 665 (65.6) |
| Front overhang |
3 |
730 (28.7) |
730 (28.7) |
| Wheelbase |
4 |
2, 450 (96.5) |
2, 450 (96.5) |
| Rear overhang |
5 |
600 (23.6) |
600 (23.6) |
| Overall length |
6 |
3, 780 (148.8) |
3, 780 (148.8) |
| Ground clearance (unladen) |
7 |
160 (6.3) |
160 (6.3) |
| Overall height (unladen) |
8 |
1, 500 (59.1) |
1, 500 (59.1) |
| Rear track |
9 |
1, 415 (55.7) |
1, 415 (55.7) |
| Vehicle weight kg (lb) |
Kerb weight |
Without optional parts |
895 (1, 973) |
905 (1, 996) |
| With full optional parts |
914 (2, 015) |
922 (2, 033) |
| Gross vehicle weight rating |
1, 320 (2, 910) |
1, 320 (2, 910) |
| Gross axle weight rating-front |
730 (1, 609) |
730 (1, 609) |
| Gross axle weight rating-rear |
670 (1, 477) |
670 (1, 477) |
| Seating capacity |
5 persons |
5 persons |
| Engine |
Model code |
3A92 |
3A92 |
| Type |
DOHC MIVEC (12-valves 3-cylinders) petrol engine |
DOHC MIVEC (12-valves 3-cylinders) petrol engine |
| Total displacement cm3
(cu in) |
1, 193 (72.8) |
1, 193 (72.8) |
| Maximum output kW/r/min (HP/r/min) |
55/6, 000 (74/6, 000) |
55/6, 000 (74/6, 000) |
| Maximum torque N.m/r/min (ft-lb/r/min) |
101/4, 000 (74/4, 000) |
101/4, 000 (74/4, 000) |
| Fuel system |
Fuel supply system |
MFI |
MFI |
| Transmission |
Model code |
F5MBD |
F5MBD |
| Type |
Front wheel drive 2WD, 5M/T |
Front wheel drive 2WD, 5M/T |
| Minimum turning radius m (ft) |
Body |
4.9 (16.08) |
4.9 (16.08) |
| Wheel |
4.6 (15.09) |
4.6 (15.09) |
| Vehicle dimension mm (in) |
Front track |
1 |
1, 430 (56.3) |
1, 430 (56.3) |
| Overall width |
2 |
1, 665 (65.6) |
1, 665 (65.6) |
| Front overhang |
3 |
730 (28.7) |
730 (28.7) |
| Wheelbase |
4 |
2, 450 (96.5) |
2, 450 (96.5) |
| Rear overhang |
5 |
600 (23.6) |
600 (23.6) |
| Overall length |
6 |
3, 780 (148.8) |
3, 780 (148.8) |
| Ground clearance (unladen) |
7 |
160 (6.3) |
160 (6.3) |
| Overall height (unladen) |
8 |
1, 500 (59.1) |
1, 500 (59.1) |
| Rear track |
9 |
1, 415 (55.7) |
1, 415 (55.7) |
| Vehicle weight kg (lb) |
Kerb weight |
Without optional parts |
920 (2, 029) |
930 (2, 051) |
| With full optional parts |
939 (2, 070) |
947 (2, 088) |
| Gross vehicle weight rating |
1, 370 (3, 020) |
1, 370 (3, 020) |
| Gross axle weight rating-front |
730 (1, 609) |
730 (1, 609) |
| Gross axle weight rating-rear |
670 (1, 477) |
670 (1, 477) |
| Seating capacity |
5 persons |
5 persons |
| Engine |
Model code |
3A92 |
3A92 |
| Type |
DOHC MIVEC (12-valves 3-cylinders) petrol engine |
DOHC MIVEC (12-valves 3-cylinders) petrol engine |
| Total displacement cm3
(cu in) |
1, 193 (72.8) |
1, 193 (72.8) |
| Maximum output kW/r/min (HP/r/min) |
55/6, 000 (74/6, 000) |
55/6, 000 (74/6, 000) |
| Maximum torque N.m/r/min (ft-lb/r/min) |
101/4, 000 (74/4, 000) |
101/4, 000 (74/4, 000) |
| Fuel system |
Fuel supply system |
MFI |
MFI |
| Transmission |
Model code |
F1CJB |
F1CJB |
| Type |
Front wheel drive 2WD, CVT |
Front wheel drive 2WD, CVT |
| Minimum turning radius m (ft) |
Body |
4.9 (16.08) |
4.9 (16.08) |
| Wheel |
4.6 (15.09) |
4.6 (15.09) |
