Removal And Installation: Notes

CAUTION:

• The parts indicated by ^*1 are the nut with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

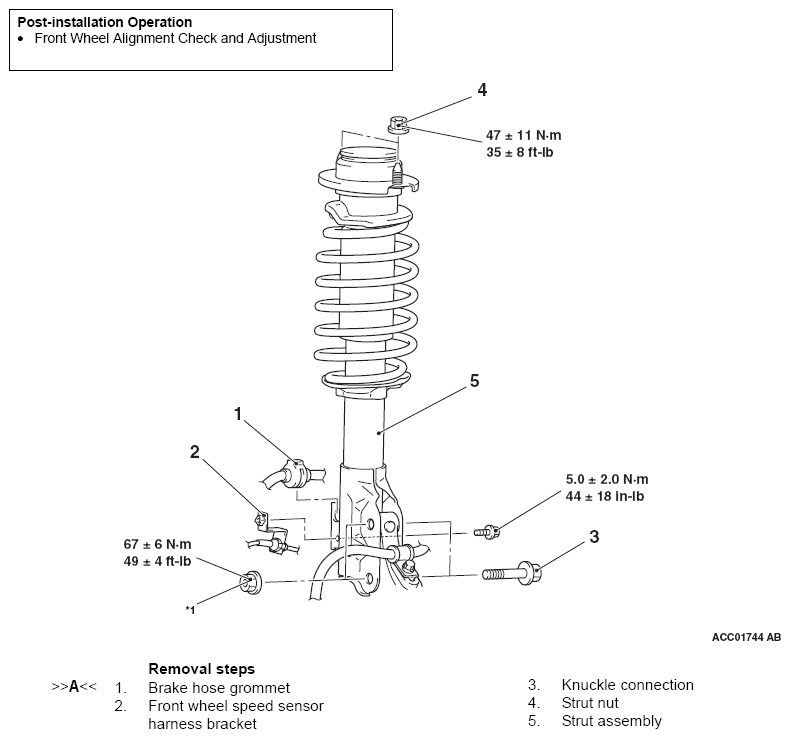

Fig 1: Exploded View Of Strut Assembly With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
