Cruise Control On/Off Switch Check

  1. Turn the ignition switch to the "ON" position.
  2. Push the cruise control ON/OFF switch of the cruise control switches, and check that the cruise control indicator lamp within the combination meter illuminates < standard meter > or the cruise control display screen is displayed on the multi information display in the combination meter < high contrast meter >.
  3. Push the cruise control ON/OFF switch again, and check that the cruise control indicator lamp within the combination meter < standard meter > or the cruise control display screen goes out < high contrast meter >.
    Fig 1: Pushing Cruise Control ON/OFF Switch
    G10224415Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

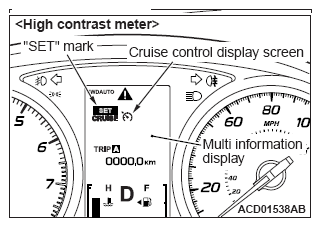

    Fig 2: Screen Display - Cruise Control And Combination Meter
    G10224416Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
