REMOVAL AND INSTALLATION (3.0 L Engine): Notes

Pre-removal Operation  Engine Room Under Cover Front A and Engine Room Side Cover (RH) Removal (Refer to UNDER COVER ).

Post-installation Operation  Generator Drive Belt Tension Check (Refer to DRIVE BELT TENSION CHECK ). Engine Room Under Cover Front A and Engine Room Side Cover (RH) Installation (Refer to REMOVAL AND INSTALLATION ).

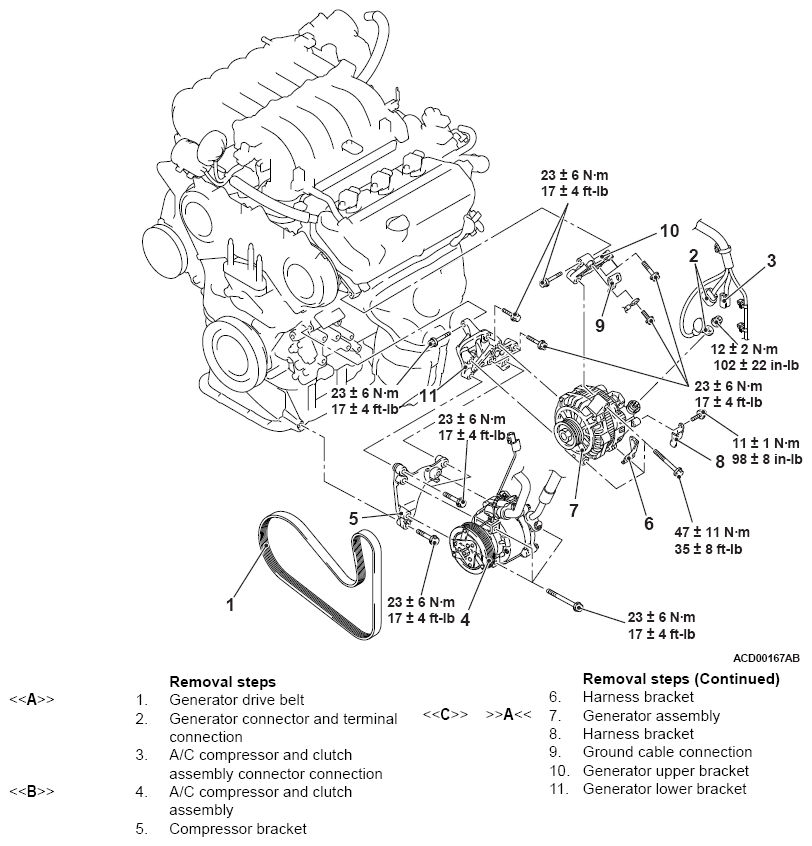

Fig 1: Removing/Installing Engine Electrical Charging System With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
