General Information
›
Lifting, Jacking Support Location
›
Garage Jack
Garage Jack
CAUTION:
Be sure to support the specified locations only. Otherwise, deformation of vehicle may occur.

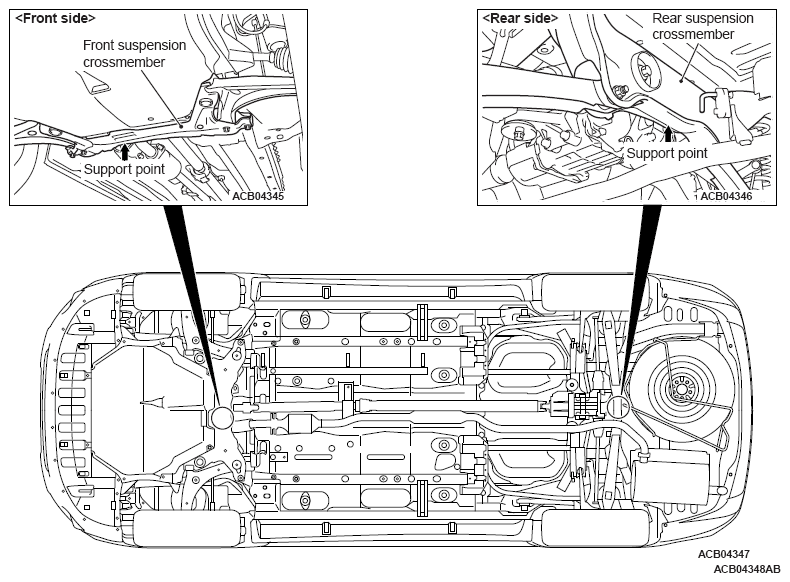

Fig 1: Lifting, Jacking Support Location
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
